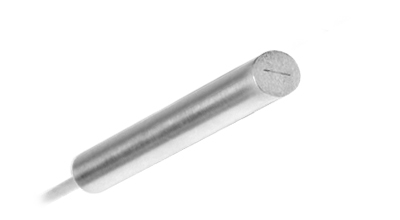

Self Renewing Thermocouples

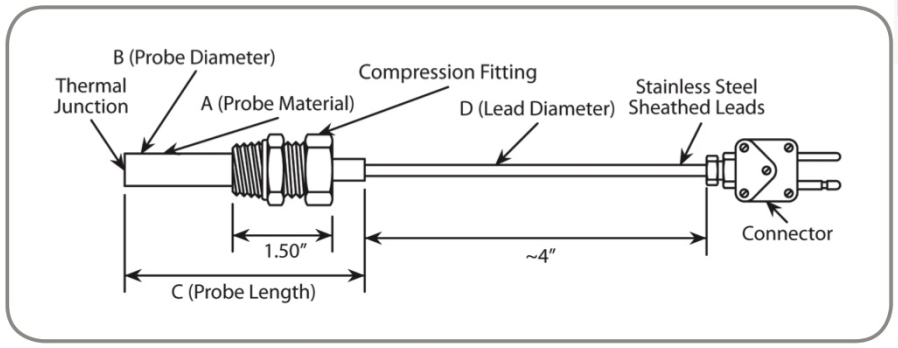

• Includes a stainless steel adjustable compression fitting with 1/8 NPT threads (3/8 inch OD probes use a 1/4 inch NPT fitting).

• Other size NPT or 0-Ring fittings are available.

• A standard thermocouple plug is attached to all units (female connectors are supplied).

• All Tantalum units are thermally ungrounded and require construction that utilizes a union to join the thermocouple probe to the stainless steel sheathed leads (stem).

• Other lead diameters available, up to 1/4 of an inch.

Download Specifications (PDF)
