Self-Renewing Thermocouples

E12 Series

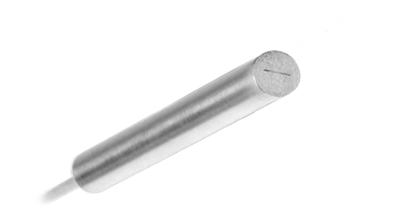

An innovation in thermocouple design this patented Self- Renewing Thermocouple provides temperature data never before available. This innovative design puts the thermocouple junction exactly at the end of the probe. It can be machined to most any shape, erode or wear away up to 1/2 inch during the process and continuously renew it’s own junction while being eroded.

Self Renewingb Thermocouples
    NOTES:
  • Includes a stainless steel adiustable comprseession fitting with 1/8 NPT threads (3/8 inch OD probes use a 1/4 inch NPT fitting).
  • Other size hIPT or O-Ring fittings are
  • A standard thermocoupIe pIu is attached to all units (female connectors are supplied).
  • All Tantalum units are thermally ungrounded and require construction that utilizes a union tOo join the thermocoupie probe to the stainless steel sheathed leads (stem).
Self Renewingb Thermocouples

Tantalum requires slight design modifications - co factory for specifics

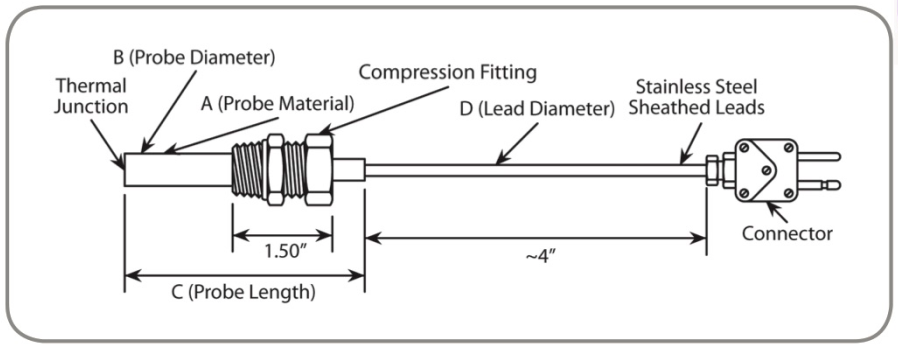

Specifications
Part No.Material ans Dimensions (in.)
ABCD
E12-1
E12-2
E12-3
E12-4
SS 304
SS 304
SS 304
SS 304
0.250
0.187
0.125
0.375
4
4
4
4
0.125
0.125
0.063
0.125
* E12-5ATantalum0.25040.125
E12-8Inconel0.25040.125
E12-9Copper0.25040.125
