Products / RTD (Resistance Thermometer) to 850°C / Flow-Thru Thermocouples and RTD's Male & Female NPT Unions

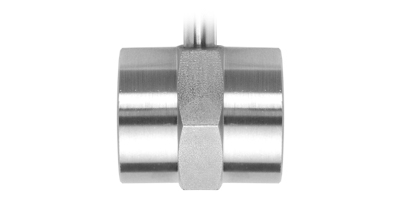

Flow-Thru Thermocouples and RTD's Male & Female NPT Unions

• Temperature Range: -320 to 1,250 degrees Fahrenheit.

• Pressures up to 4,000psi.

• Response Times: Thermocouples (20ms) and RTDs (3s).

• Available Types: Thermocouples (J, K, E & T) and RTDs (Pt100 2 wire standard).

• Termination: 3/8 inch OD stainless steel tube with standard size 2 pin male plug attached.

• Termination Styles: Transition to Flex Leads, Explosion Proof Connector Head, 3 or 4 wire RTD, Flexible Lead Wire, etc. (contact factory).

• Union Type: 316 stainless steel compression tube union.

• RTDs come standard with diaphragm. Thermocouples with a diaphragm are available upon request.

Download Specifications (PDF)

Build your product below
