Flow-Thru Thermocouples & RTDs

Male and Female NPT Unions

D4A Series

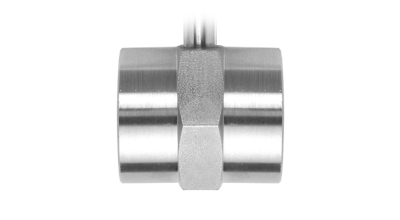

Flow Thru Thermocouples and Male Female

Our Flow-Thru Thermocouples and RTDs use either a right- angle ribbon thermocouple sensor or a Pt100 Ohm RTD. Utilizing a special ribbon element which eliminates conduction errors due to shallow immersion into the flowing gas or liquid within the pipeline. Additionally, this ribbon design provides response times within the low milliseconds. All R100 RTD devices are sanitary since the sensor is separated from the material in the pipeline by a 0.015 inch thick stainless steel diaphragm. For thermocouples requiring sanitary designs contact the factory.

    NOTES:
  • Temperature Range: -320 to 1, 250 degrees Fahrenheit
  • Pressures up to 4,000psi
  • Response Times: Thermocouples (20ms) and RTDs (3s)
  • Thermocouple Types: E, J, K & T) and RTDs (Pt100 2 wire standard)
  • Termination: 3/8 inch OD stainless steel tube with standard size 2 pin male plug attached.
  • Terminition Styles: Transition t Flex Leads, Explosion Proof Connector Head, 3 or 4 wire RTD, Flexible Lead Wire, etc. (contact factory)
  • Union TIP e: 316 stainless steel compression tube union

RTDs come standard with diaphragm. Thermocouples with a diaphragm are available upon request.

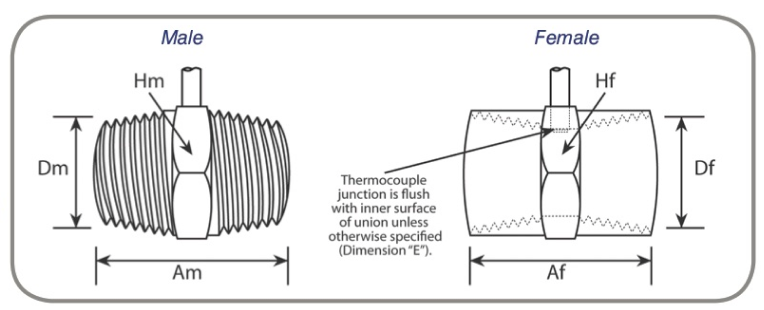

Flow Thru Thermocouples and Male Female
Specifications
Part No.Pipe SizeMaleFemaleMeximum (psi)
DmHmAmDfHfAfMaleFemale
D4A-4
D4A-6
D4A-8
D4A-10
D4A-12
D4A-16
D4A-20
D4A-24
D4A-32
1/8
1/4
3/8
1/2
3/4
1
1-1/4
1-1/4
2
3/16
9/32
3/8
15/32
5/8
7/8
1-3/32
1-11/32
1-13/16
7/16
9/16
11/16
7/8
1-1/16
1-3/8
1-3/4
2-1/8
2-3/4
1-7/32
1-19/32
1-5/8
2
2
2-1/4
1-13/32
1-21/32
1-29/32
11/32
7/16
37/64
23/32
59/64
1-1/64
1-1/2
1-3/4
2-7/8
9/16
3/4
7/8
1-1/16
1-1/4
2-1/4
1-5/8
2-1/8
2-7/8
13/16
1-1/8
1-1/4
1-1/2
59/64
1-9/16
2
2-3/8
2-5/8
4,000
4,000
4,000
4,000
4,000
4,000
3,000
2,500
2,500
4,000
4,000
3,500
3,500
3,500
3,500
2,000
1,000
1,000
