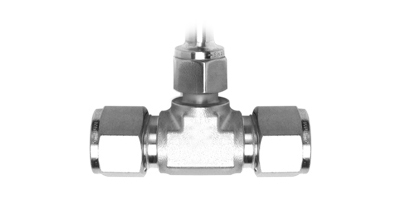

Flow-Thru Thermocouples and RTD's Compression Fitting Tube Unions

• For thermocouples requiring sanitary designs contact the factory.

• Temperature Range: -320 to 1,250 degrees Fahrenheit.

• Pressures up to 4,000psi.

• Response Times: Thermocouples (20ms) and RTDs (3s).

• Available Types: Thermocouples (J, K, E & T) and RTDs (Pt100 2 wire standard).

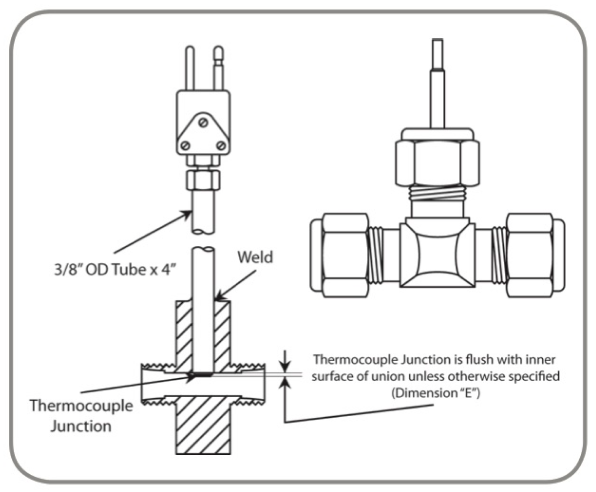

• Termination: 3/8 inch OD stainless steel tube with standard size 2 pin male plug attached.

• Termination Styles: Transition to Flex Leads, Explosion Proof Connector Head, 3 or 4 wire RTD, Flexible Lead Wire, etc. (contact factory).

• Union Type: 316 stainless steel compression tube union. Stainless Steel 316 (SS), Brass (BR) or Carbon Steel (CS). Example D4-80-K-BR.

• RTDs come standard with diaphragm. Thermocouples with a diaphragm are available upon request for sanitary applications.

Download Specifications (PDF)
