Flow-Thru Thermocouples & RTDs

Compression Fitting Tube Unions

D4 Series

Our Flow-Thru Thermocouples and RTDs use either a right-angle ribbon thermocouple sensor or a R100 Ohm RTD. Utilizing a special ribbon element which eliminates conduction errors due to shallow immersion into the flowing gas or liquid within the pipeline. Additionally, this ribbon design provides response times within the low econds. All R100 RTD devices are sanitary since the senso is separated from the material in the pip ne by a 0.015 inch thick stainless steel diaphragm. For thermocouples requiring sanitary designs contact the factory.

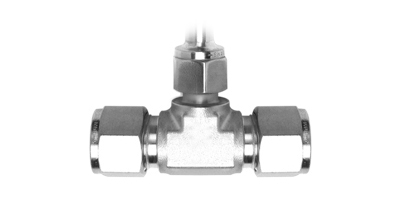

Flow Thru Thermocouples
    NOTES:
  • Ternperature Rang 320 to 1,250 degrees Fahrenheit
  • Pressures up to 4,000psi
  • Response Times: Thermocouples (20ms) and RTDs (3s)
  • Thermocouple Types: E, J, K & T) and RTDs (Pt100 2 wire standard)

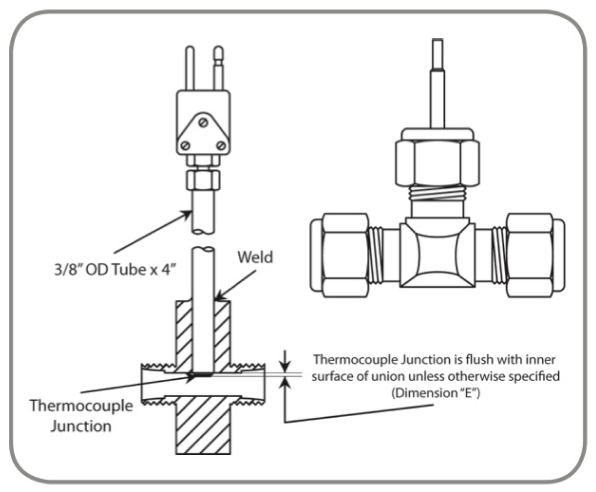

  • Termination: 3/8 inch OD stainless steel tube with standard size 2 pin male plug attached.
  • Terminition Styles: Transition t Flex Leads, Explosion Proof Connector Head, 3 or 4 wire RTD, Flexible Lead Wire, etc. (contact factory)
  • Union TIP e: 316 stainless steel compression tube union
Flow Thru Thermocouples

RTDs come standard with diaphragm. Thermocouples with a diaphragm are available upon request for sanitary applications

Specifications
Part No.T (Diameter)A (in.)
D4-80
D4-81
D4-82
D4-83
D4-84
D4-85
D4-86
1/4
5/16
3/8
1/2
5/8
3/4
1
2.14
2.34
2.40
2.76
2.92
3.02
3.58
