Products / Ultra Fast (Eroding) Thermocouples / Right Angle Ribbon Thermocouples w/ Dust Deflector

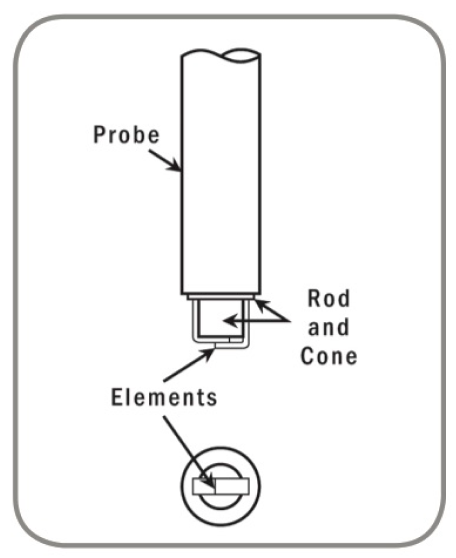

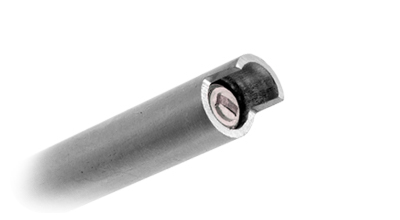

Right Angle Ribbon Thermocouples w/ Dust Deflector

• Standard probe comes with a two-prong standard plug connector attached. Mating jack connector with cable clamp is furnished with each unit.

• Thermocouple junction has no conduction errors.

• Pressure range to 4,000 psi.

• Low millisecond response time to temperature changes.

• Temperature range from -320 to 2,000 degrees Fahrenheit.

• Available in thermocouple calibration types E, J, K, N, and T.

• When ordering specify part number C5 and thermocouple calibration type. Example: C5-J

Download Specifications (PDF)

Build your product below
