Products
/
Thermowells
/ Heavy Duty Tapered Thermowells for 1/4" & 3/8" Diameter Elements

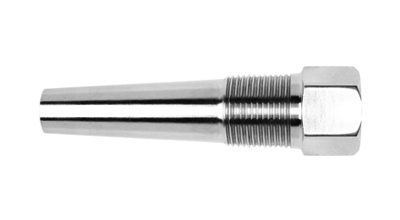

Heavy Duty Tapered Thermowells for 1/4" & 3/8" Diameter Elements
See Specifications
Build your product below
Thermowell Material
Select Thermowell Material
SS304
SS316
Brass
Carbon Steel
Exterior Thread (P)
Select Exterior Thread (P)
0.75" NPT
1" NPT
Stem Length (A)
Select Stem Length (A)
4
6
9
12
15
18
24
Insertion Length (U)
Select Insertion Length (U)
2.5
4.5
7.5
10.5
13.5
19.5
22.5
Bore Diameter (B)
Select Bore Diameter (B)
0.26
0.385
Quantity
Additional Requirements
Request Quote
