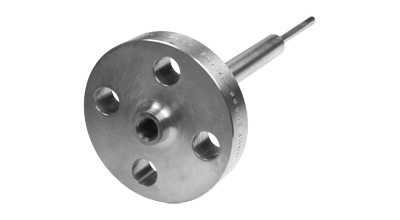

Flanges for Thermowells (1/4" & 3/8" Diameter Elements)

• Thermowells available in SS 304, SS 316 and C-1018. Monel and other materials may be available upon request.

• NPSM internal pipe thread will accept NPT and NPS male threads.

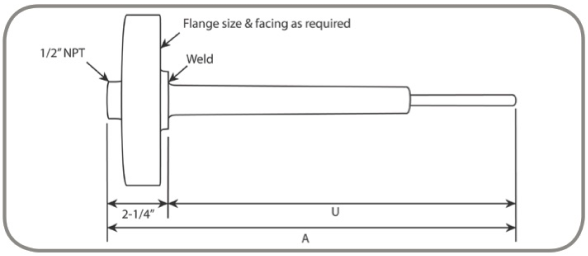

• Primary weld is a "J" groove type, secondary weld is a 45 degree bevel groove. All welding is performed by certified welders using inert gas shielded arc.

• Custom flanges and sizes are available upon request.

• Diameter elements (Q) are 0.75" for bore diameter of 0.264".

• Diameter elements (Q) are 0.875" for bore diameter of 0.385".

Download Specifications (PDF)

Build your product below
