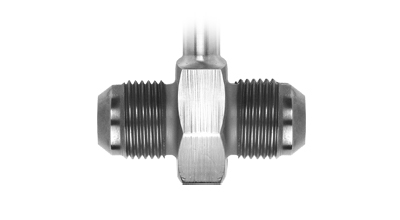

Flow-Thru Thermocouples and RTD's

• Temperature range: -320 to 1,250 degrees Fahrenheit.

• Pressure range: 0 to 4,000 psi.

• Response time: 20 milliseconds to transient temperature changes.

• Thermal junction: exposed Right-Angle Ribbon.

• Union type: stainless steel flared tube union, furnished without tube nuts.

• Thermocouple Types: E, J, K & T.

• Termination is 1/4 inch OD stainless steel tube with standard size male plug attached.

• Other termination styles are available upon request; i.e. transition to flex leads, explosion proof connector heads, etc.

• RTD units are available upon request.

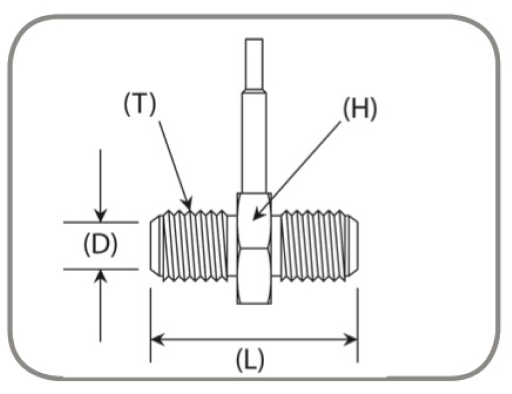

• All units come standard with junction flush to inner wall surface. If junction is to protrude into the stream, specify dimension "I" up to 1/4 inch. Example D3-4-K-I = 1/16.

• Tolerance on "I" is 0.015 inch.

• Tolerance "I" is how far the the assembly goes into the wall while length of protrusion "L" is the the distance into the flow.

Download Specifications (PDF)

Build your product below
