We offer PFA Teflon® expanded tubing with one end closed for heat shrinking onto probes from 1/16 inch diameter to 1/4 inch diameter and lengths of 60 inches. This PFA tubing is rated at 260 degrees Celsius (450 degrees Fahrenheit) maximum continuous service temperature. These tubes can be shrunk onto the thermocouple or RTD probe with a hot air gun at 300 degrees Fahrenheit. The PFA Teflon® coated probes are ideal for use in caustic or corrosive chemical solutions. The temperature of sulfuric, hydrochloric, nitric, and chromic acids can be measured at temperatures up to 450 degrees Fahrenheit. Thermocouple and RTD probes can also be encapsulated with PFA Teflon® at time of manufacture at a small surcharge.

Teflon Tubing w/ Encapsulation

We offer two styles of adjustable compression fittings for use in mounting thermocouples into thick or thin walls. One style uses a standard NPT pipe thread while the other uses a straight thread with 0-ring seal. Both are typically available from stock in 316 stainless steel (brass upon request).
Both styles are available for probe diameters from 1/16" to 1.0" OD. (other sizes upon request). The O-ring style is also ideal for use in thin-wall applications, glass containers, jar lids, etc. Simply put a jam nut on other side of container lid.

Adjustable Compression Fittings

Prongs and inserts match thermocouple calibrations to maintain sensing accuracy. Alloy and polarity are identified by symbols molded into body. Molded from a glass filled thermoset compound for high strength, these connectors are color coded to thermocouple calibration and can be used in ambient temperatures of a continuous 400 degrees Fahrenheit and an intermittent 500 degrees Fahrenheit. High temperature connectors are all color coded 'Red' with an ambient temperature of a continuous 800 degrees Fahrenheit and an intermittent 1,000 degrees Fahrenheit. Inserts have a spring loaded collet assuring full positive contact. The negative insert is larger preventing mismatching.

Standard 2 Pole & 3 Pole Connectors

Our miniature plugs and jacks provide dependability. Quick and easy installation of thermocouple wires and sheaths. Accepting wire from 0.001" diameter to 20 gage. Polarized pins minimize mismatching of the large double wipe jacket inserts assure tight grip and positive contact. Rubber grommets are supplied with plugs and jacks. Molded from a glass filled thermoset compound for high strength.
These connectors are color coded to thermocouple calibration and can be used in ambient temperatures of a continuous 400 degrees Fahrenheit and intermittent 500 degrees Fahrenheit. High temperature connectors are color coded 'Red.' With ambient temperatures of a continuous 800 degrees Fahrenheit and intermittent 1,000 degrees Fahrenheit.

Miniature Plugs & Jacks

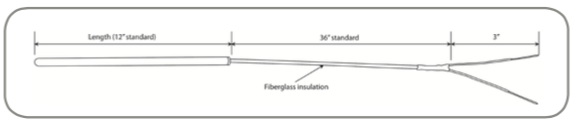

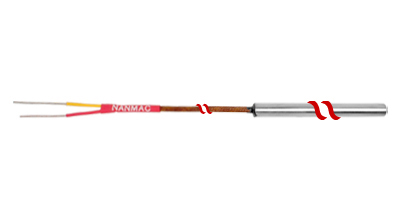

The construction of this thermocouple is a one piece design which does not utilize any transition fitting. Advantages of this construction are no splices from thermocouple to lead wire and no transition adaptors having a diameter greater than the thermocouple sheath. Units can therefore be mounted from the inside out of a chamber, pushed into a drilled hole, etc.

بناء هذا الحرارية هو تصميم قطعة واحدة التي لا تستخدم أي تركيب الانتقالية. مزايا هذا البناء لم التوصيلات من الحرارية إلى سلك الرصاص ولا محولات الانتقال جود أكبر قطرها من غمد الحرارية. وبالتالي، يمكن أن يتم تنظيمها وحدات من الداخل الى الخارج من غرفة، دفعت في حفرة حفرها، الخ

Konstrukce tohoto termočlánku je konstrukce z jednoho kusu, který nevyužívá žádný přechodu kování. Výhody této konstrukce nejsou žádné spoje z termočlánku do přívodního vedení a žádné přechodové adaptéry, které mají průměr větší, než je termočlánku pláště. Jednotky mohou proto být namontován zevnitř ven z komory, zasune do vyvrtaného otvoru, atd

Die Konstruktion dieses Thermoelementes ist eine einstückige Konstruktion, die kein Übergangsstück nicht nutzt. Vorteile dieser Konstruktion sind keine Spleiße vom Thermoelement an Leitungsdraht und keine Übergangsadapter mit einem Durchmesser größer als der Mantel-Thermoelement aufweist. Einheiten können somit von der Innenseite aus einer Kammer montiert werden, in ein Bohrloch geschoben wird, usw.

Η κατασκευή αυτού του θερμοηλεκτρικού ζεύγους είναι ένα σχέδιο ένα κομμάτι που δεν χρησιμοποιεί καμία μεταβατική τοποθέτηση. Τα πλεονεκτήματα αυτής της κατασκευής υπάρχουν συναρμογές από θερμοστοιχείο προς μολύβδου σύρμα και καμία μετάβαση προσαρμογείς που έχει μία μεγαλύτερη διάμετρο από το περίβλημα θερμοστοιχείο. Οι μονάδες μπορούν επομένως να τοποθετηθεί από μέσα προς τα έξω από ένα θάλαμο, ωθείται σε μια διάτρημα, κ.λπ.

La construcción de este termopar es un diseño de una pieza que no utiliza cualquier accesorio de transición. Las ventajas de esta construcción hay empalmes de termopar a alambre de plomo y no hay adaptadores de transición que tienen un mayor diámetro que la vaina de termopar. por lo tanto, las unidades pueden montarse desde el interior de una cámara, empujados en un agujero perforado, etc.

La construction de ce thermocouple est une conception en une seule pièce qui n'utilise pas de raccord de transition. Les avantages de cette construction sont pas épissures de thermocouple à fil de connexion et aucun adaptateur de transition ayant un plus grand diamètre que la gaine du thermocouple. Les unités peuvent donc être montés de l'intérieur d'une chambre, poussé dans un trou de forage, etc.

La costruzione di questo termocoppia è un disegno di un pezzo che non utilizza alcun raccordo di transizione. I vantaggi di questa costruzione sono giunti da termocoppia a cavo e senza gli adattatori di transizione aventi un diametro maggiore rispetto alla guaina per termocoppia. Le unità possono quindi essere montati dall'interno verso l'esterno di una camera, spinti in un foro, etc.

この熱電対の構造は、任意の遷移フィッティングを利用しないワンピース設計です。この構成の利点は、熱電対のリード線及び熱電対鞘より大きい直径を有するない遷移アダプタへのスプライスされません。ユニットは、したがって等、穿孔に押し込ま、チャンバから内側から取り付けることができます

이 열전대의 구조는 전환 피팅을 사용하지 않는 한 조각 디자인입니다. 이 구성의 장점은 리드선 열전대로부터 접합부 및 열전대 시스보다 큰 직경을 가지는 트랜지션 어댑터 없다. 따라서, 단위 등의 천공 홀에, 챔버로부터 내부에서 탑재 될 수 푸시

A construção desta termopar é um projeto de uma peça que não utiliza qualquer acessório de transição. As vantagens desta construção há junções de par termoeléctrico para fio de chumbo e sem adaptadores de transição que têm um diâmetro maior do que a bainha do termopar. As unidades podem, portanto, ser montada a partir do interior para fora de uma câmara, empurrado para dentro de um orifício perfurado, etc.

Конструкция этого термопары дизайн один кусок, который не использует какой-либо переходный фитинг. Преимущества этой конструкции нет сростков от термопары к свинцовой проволоке и никаких переходных адаптеров, имеющие больший диаметр, чем термопары оболочка. Поэтому Единицы могут быть установлены с внутренней стороны из камеры, заталкивают в просверленное отверстие и т.д.

Byggandet av denna termo är ett stycke konstruktion som inte använder någon övergång montering. Fördelarna med denna konstruktion finns inga skarvar från termoelementet till ledningstråden och inga övergångs adaptrar som har en diameter som är större än den termo manteln. Enheter kan därför monteras från insidan av en kammare, skjuts in i ett borrat hål, etc.

Bu termokupl yapı herhangi bir geçiş uydurma kullanmayan ve bir tek parça bir tasarımdır. Bu tasarımın avantajları teline termokupl hiçbir eklemeler ve termo kılıf daha büyük bir çapa sahip olan bir geçiş bağdaştırıcılarıdır. Birimler nedenle vb sondaj deliği içine, bir bölmenin içten dışa monte itilebilir

Việc xây dựng cặp nhiệt điện này là một thiết kế một mảnh mà không sử dụng bất kỳ phụ kiện chuyển đổi. Ưu điểm của xây dựng này không có chỗ nối từ cặp nhiệt điện để dây dẫn và không có adapter chuyển tiếp có một lớn hơn đường kính hơn so với vỏ cặp nhiệt điện. Đơn vị do đó có thể được gắn kết từ trong ra ngoài của một buồng, đẩy vào một lỗ khoan vv

这种热电偶的结构是一个单件设计，其不使用任何过渡接头。这种结构的优点是没有从热电偶接头到引线和具有直径大于热电偶护套没有过渡适配器。单元因此可以从内部安装了一个腔室，推入钻孔等

Products / Mineral Insulated Thermocouples (to 1350°C) / MI Cable w/ Flexible Extensions (One-Piece Construction)

MI Cable w/ Flexible Extensions (One-Piece Construction)
