Flow-Thru Thermocouples and RTD's

• Temperature range: -320 to 1,250 degrees Fahrenheit.

• Pressure range: 0 to 4,000 psi.

• Response time: 20 milliseconds to transient temperature changes.

• Thermal junction: exposed Right-Angle Ribbon.

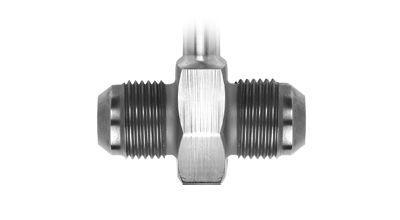

• Union type: stainless steel flared tube union, furnished without tube nuts.

• Thermocouple Types: E, J, K & T.

• Termination is 1/4 inch OD stainless steel tube with standard size male plug attached.

• Other termination styles are available upon request; i.e. transition to flex leads, explosion proof connector heads, etc.

• RTD units are available upon request.

• All units come standard with junction flush to inner wall surface. If junction is to protrude into the stream, specify dimension "I" up to 1/4 inch. Example D3-4-K-I = 1/16.

• Tolerance on "I" is 0.015 inch.

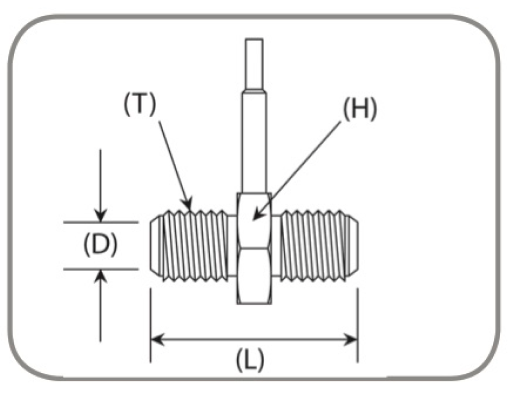

• Tolerance "I" is how far the the assembly goes into the wall while length of protrusion "L" is the the distance into the flow.

Download Specifications (PDF)
