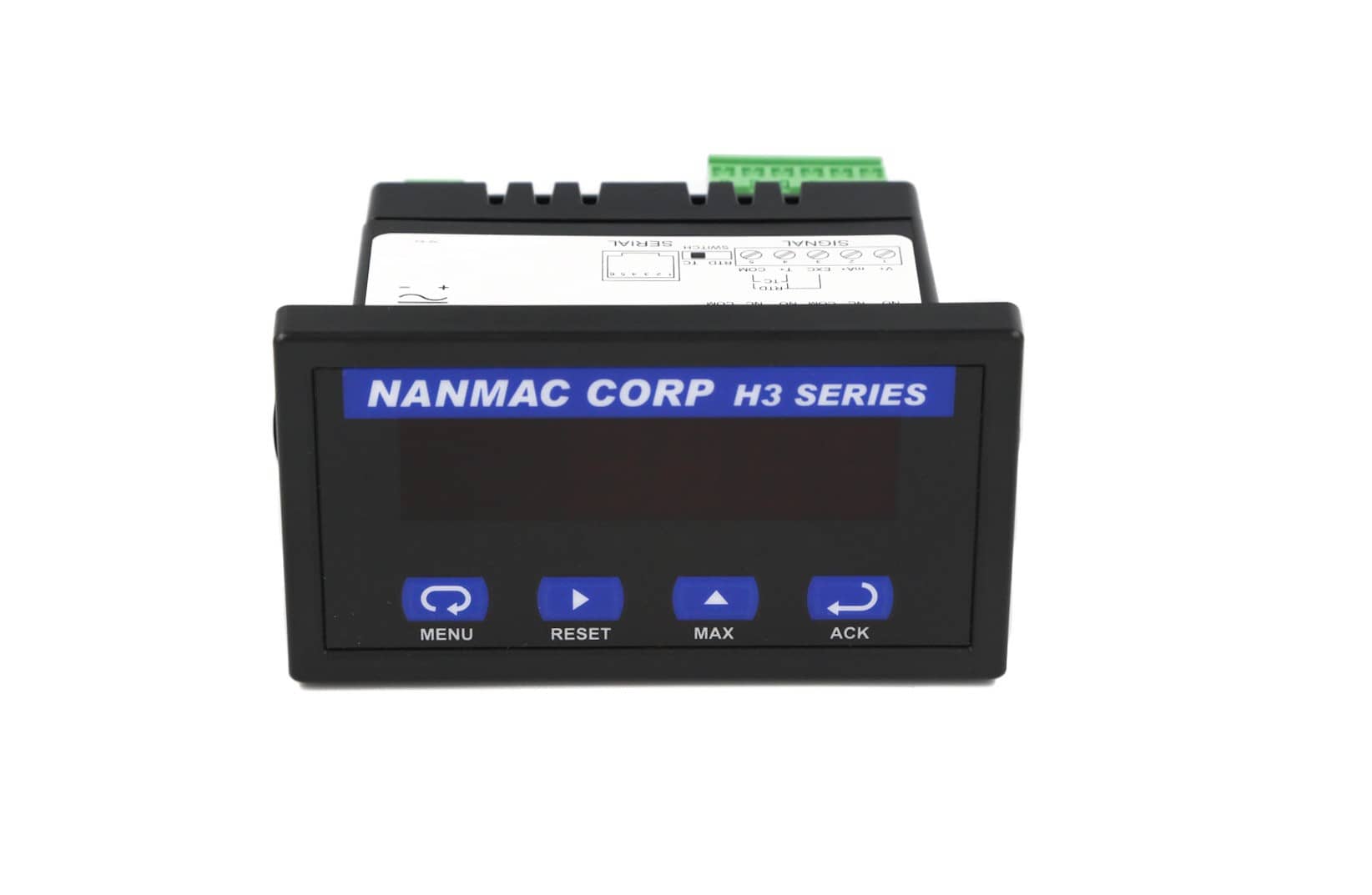

Digital Displays & Controllers

• Field selectable inputs.

• 4-20 mA, ±10 V, thermocouple calibration types: E, J, K & T and Pt100 RTD inputs.

• NEMA 4X, IP 65 front panel.

• Shallow depth case 3.5" behind panel.

• Serial communication adaptor options

• Two form C 3 A relays option.

• Selectable fail-safe operation.

• Latching or non-latching.

• Pump alteration control.

• On & Off time delays.

• 23 VDC @ 200 mA supply option.

• Modbus® RTU option.

• 4-20 mA output option.

• Dual 24 VDC supplies option.

Download Specifications (PDF)
