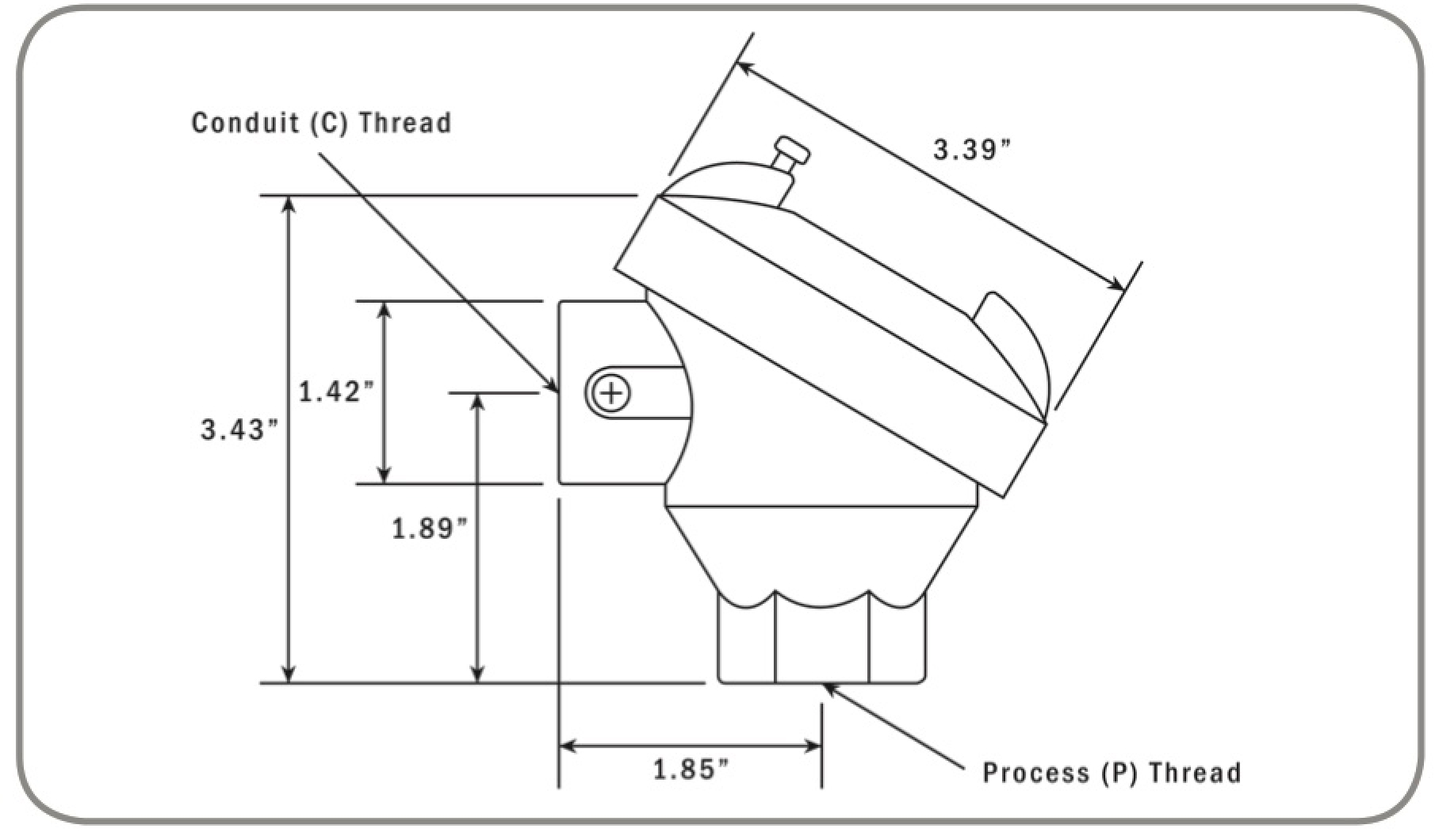

Conduit Heads Weatherproof (WP) F7-12 Series

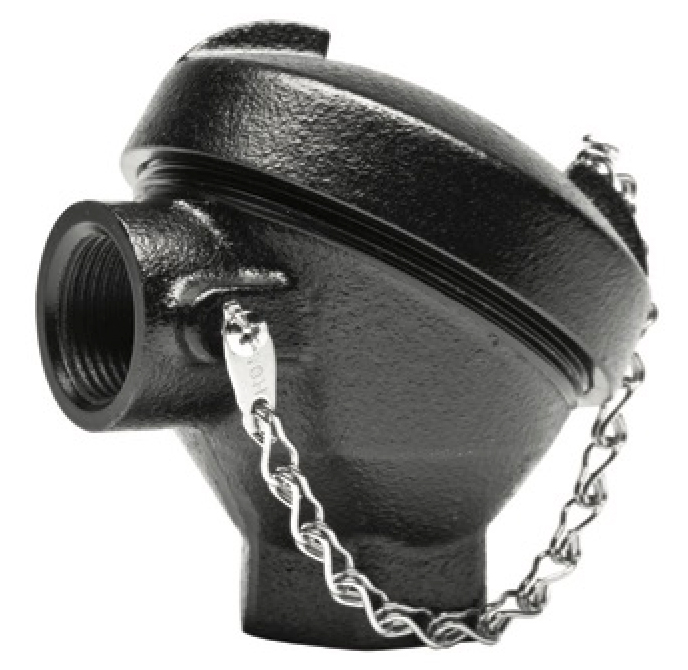

Weatherproof (WP) heads are rugged cast aluminum or cast iron screw cover units that are available in various NPT probe connection sizes and terminal clock to fit your application.
- Can accomodate standard DIN Transmitters and fits most termnial blocks.
- Rated NEMA 4x & IP68
NOTES:
| Specifications | ||
|---|---|---|
| Part No. | Material | Thread Size (P x C) |
| F7-12-1212-CI F7-12-1234-CI F7-12-3434-CI | Cast Iron | 1/2’” x 1/2’” NPT 1/2' x 3/4” NPT 3/4’” x 3/4’” NPT |
| FY-12-1212-AL F7-12-1234-AL FY-12-3434-AL | Aluminum | 1/2” x 1/2” NPT 1/2” x 3/4” NPT 3/4” x 3/4” NPT |
