Terminal Blocks for Conduit Heads F7-4 Series
Terminal blocks are designed to connect temperature probes to existing extension cables. They fit in a wide variety of sensor housings which include: aluminum, stainless steel, plastic heads, etc. These terminal blocks may be available in various shapes (round, oval, hex) and can provide 1, 2, 3, or 4 sets of poles to meet your specific installation requirements.
NOTES:
- AI2 O345% Stronger than ceramic, resistant to cracking and flaking
- Also available in Bakelite
- Designed for: Single, Duplex, and Triplex
- Other terminal blocks available upon request, contact factory

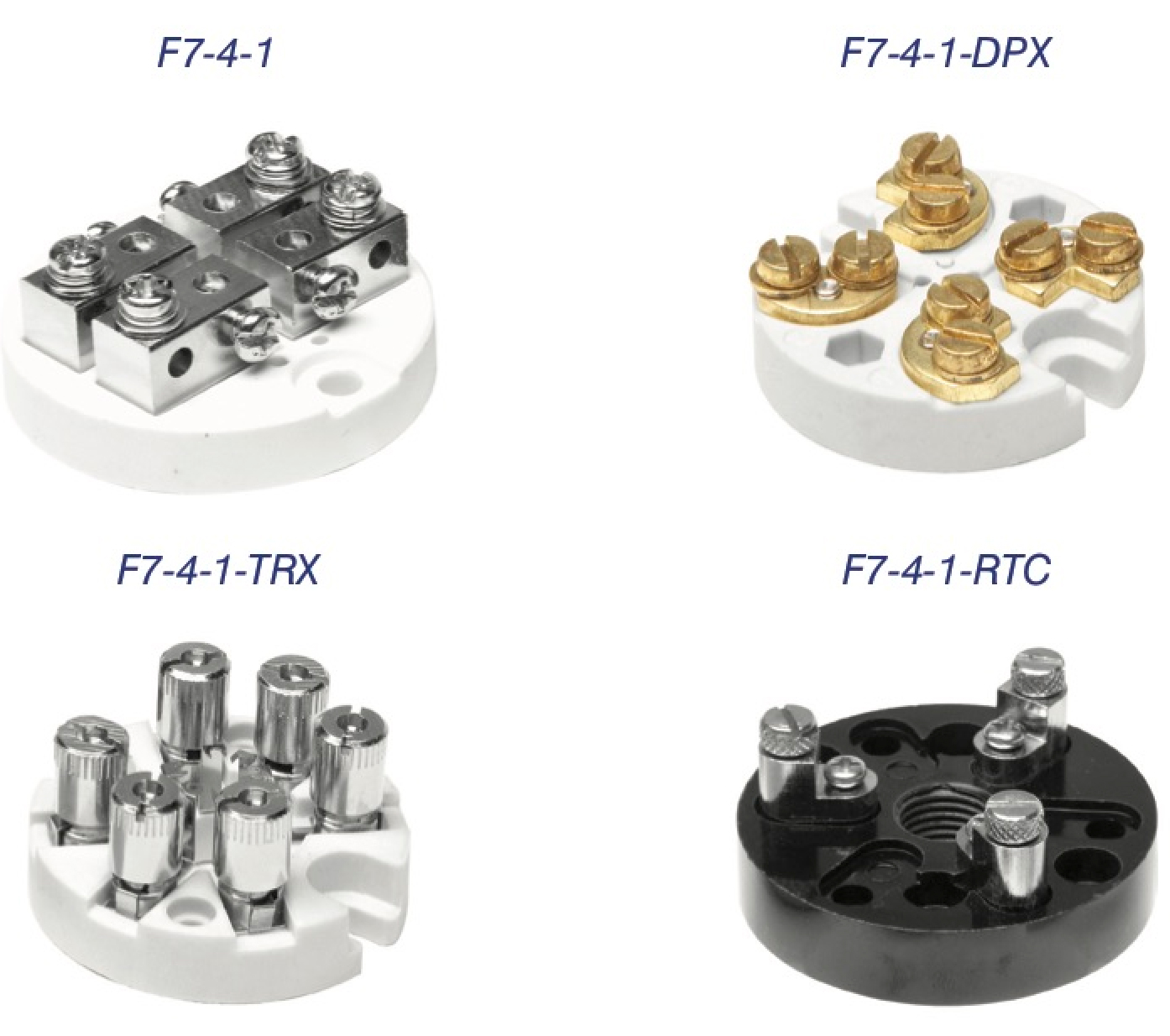

| Specifications | |||
|---|---|---|---|
| Part No. | Material | Shape | Number of Terminals |
| F7-4-1 | Alumina | Round | 4 |
| F7-4-1-DPX | Alumina | Round | 4 |
| F7-4-1-TRX | Alumina | Round | 6 |
| F7-4-1-RTC | Bakelite | Round | 3 |
| F7-4-2 | Alumina | Oval | 2 |
