Standard 2-Pole & 3-Pole Connectors

F2 Series

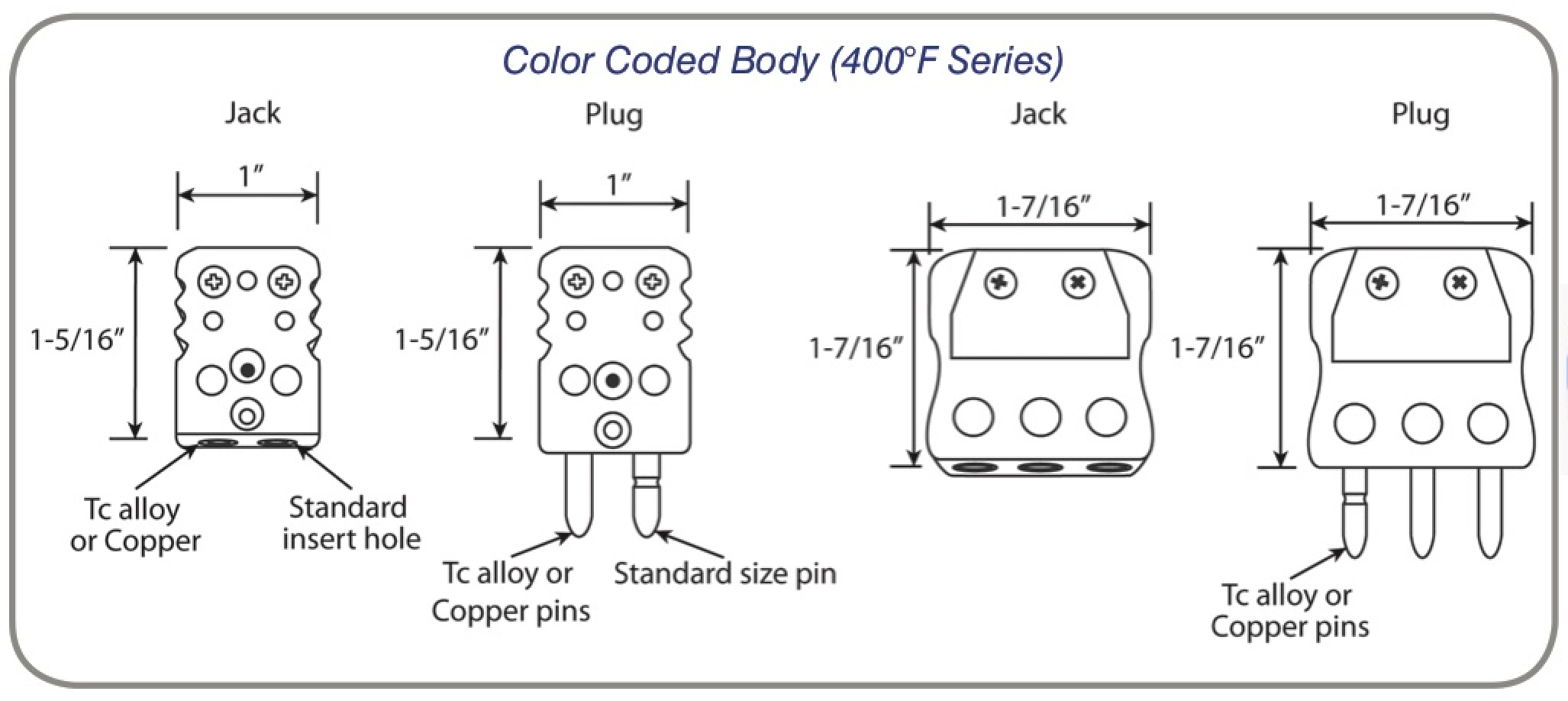

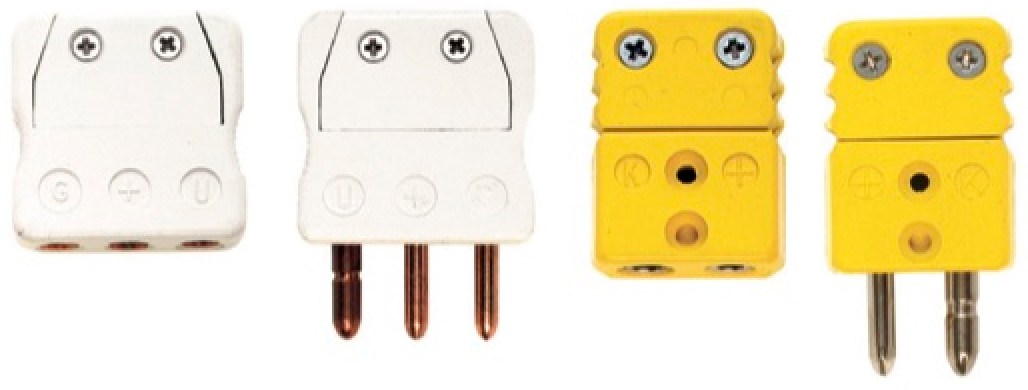

Prongs and inserts match thermocouple calibrations to maintain sensing accuracy. Alloy and polarity are identified by symbols molded into body. Molded from a glass filled thermoset compound for high strength, these connectors are color coded to thermocouple calibration and can be used in ambient temperatures of a continuous 400 degrees Fahrenheit and an intermittent 500 degrees Fahrenheit. High temperature connectors are all color coded Red’ with an ambient temperature of a continuous 800 degrees Fahrenheit and an intermittent 1,000 degrees Fahrenheit. Inserts have a spring loaded collet assuring full positive contact. The negative insert is larger preventing mismatching.

RTD Assemblies
RTD Assemblies
Specifications
Part No.Description
F2-1-(•)
F2-2-(•)
F2-3-(•)
F2-4-(•)
F2-5 (#)
F2-6
F2-7 (#)
F2-8-(•)
F2-9-(•)
F2-10-(•)
F2-11-(•)
F2-12 (3)
F2-13
2-Pole Plug, 400°F max.
2- Pole Jack, 400°F max.
2- Pole Plug, 800°F max.
2-Pole Jack, 800°F max
Tube Adaptor for 2-Pole Plug
Cable Clamp for 2-Pole Jack
Dual Element for Tube Adaptor
3-Pole Plug, 400°F max.
3-Pole Jack, 400°F max
3-Pole Plug, 800°F max
3-Pole Plug, 800°F max
Tube Adaptor for 3-Pole Plug
Cable Clamp for 3-Pole Jack
• = Insert thermocouple calibration
B, C, CU, E, J, K, N, R, S, T
# —— Specify sizes:
0.062, 0.125, 0.187, 0.250, 0.3Z5
