RTD Probes
with Various Termination Styles
I6 Series

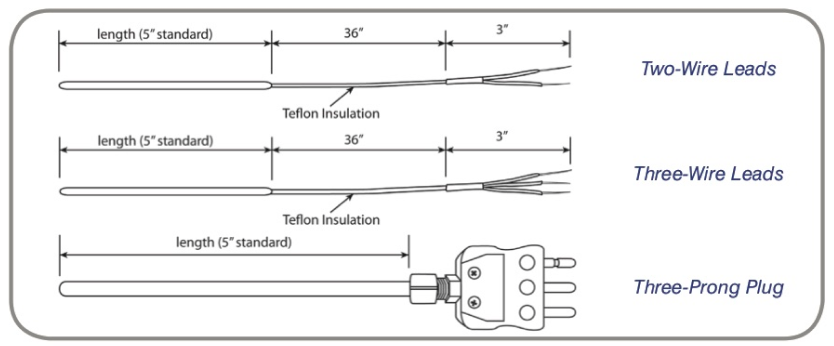

Our standard RTD probe uses a 100 ohm platinum element with alpha = 0.00385. Sheath material is SS 304 and can be 1/16, 1/8, 3/16, or 1/4 inch diameter in standard length of five inches. Units are available with either a standard size plug or teflon insulated lead wire. When ordered with a plug; the plug has three prongs. Units with lead wire can be either two or three conductor. Available with stainless steel overbraid for added durability.
1/16 and 1/8 inch diameter units have a transition between sheath and leads
| Specifications | |||
|---|---|---|---|
| Part No. | Probe OD | Termination Styles | Stainless Steel Overbraid |
| I6-20 I6-21 I6-22 I6-23 I6-23A I6-23B I6-23C I6-23D | 3/16 1/4 3/16 1/4 1/8 1/8 1/16 1/16 | Two-Wire Leads | No No Yes Yes No Yes No Yes |
| I6-24 I6-25 I6-26 I6-27 I6-27A I6-27B I6-27C I6-27D | 3/16 1/4 3/16 1/4 1/8 1/8 1/16 1/16 | Three-Wire Leads | No No Yes Yes No Yes No Yes |
| I6-28 I6-29 I6-31A I6-31B | 3/16 1/4 1/8 1/16 | Three Prong Plug | N/A |
Pt1000 also available
- Various size mounting bushings are available for these units.
- Longer sheath or lead wire lengths, four-wire units, and various sheath materials are available.
- A variety of termination styles are available for these units.
- Typical construction does not allow for bending; contact factory if your requirement involves bending
- PFA Teflon® encapsulation - good to 450°F, can be added to any probe.
NOTES:
