Multi-Pair Thermocouple Cable

G10A Series

Multi-Pair Thermocouple Cable

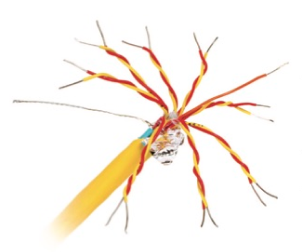

Multi-pair extension cables are available for thermocouple calibration types E, J, K, N & T. Each conductor is covered with a polyvinyl chloride (PVC) jacket having a nominal thickness of 0.015 inch. Pairs are individually twisted to reduce magnetic interference. The twisted pairs are cabled and then shielded with a 0.0015 inch think aluminum-backed mylar tape and a #20 gage stranded copper drain wire to further minimize electromagnetic interference. The cable is then covered with an outer layer of PVC about 0.045 inch thick. A heavy, easy-strip nylon thread is included. Each cable also contains a polyvinyl- clad #20 gage copper wire for use as a signal connection. Cables are color coded on the individual conductors and overall. The individual pairs are marked for easy identification.

    note
  • Temlaerature {ating of this cable is based upon the limits of the PVC insulation. The continuous use limit of this cable is 176 degrees Fahrenheit (80 degrees Celsius).
  • Volume discounts apply on quantities over 500 feet.
  • All multi-pair cable is supplied to your specified length, plus/minus 10 percent.
  • For special multi-pair cables with other calibrations, other insulations, metallic overbraid etc. contact factory.
  • Maximum continuous length is 300 feet. For longer lengths consult factory.
Multi-Pair Thermocouple Cable
Specifications
Number of PairsOverall Size (in.)Shipping Weight (pounds per 1,000 feet)
4
8
12
16
20
24
0.390
0.480
0.590
0.650
0.730
0.770
85
130
200
245
285
340
Specifications
Part No.Thermocouple CalibrationNumber of Pairs
G10A-1
G10A-2
G10A-3
G10A-4
G10A-5
G10A-6
Iron / Constantan Type JX 4
8
12
16
20
24
G10A-7
G10A-8
G10A-9
G10A-10
G10A-11
G10A-12
Chromel / Alumel Type KX 4
8
12
16
20
24
G10A-13
G10A-14
G10A-15
G10A-16
G10A-17
G10A-18
Copper / Constantan Type TX 4
8
12
16
20
24
G10A-19
G10A-20
G10A-21
G10A-22
G10A-23
G10A-24
Chromel / Constantan Type EX 4
8
12
16
20
24
G10A-90
G10A-91
G10A-92
G10A-93
G10A-94
G10A-95
NiCh / NiSi Type NX 4
8
12
16
20
24
