Thermocouple Assemblies
with Miniature Plugs Attached
A8F Series

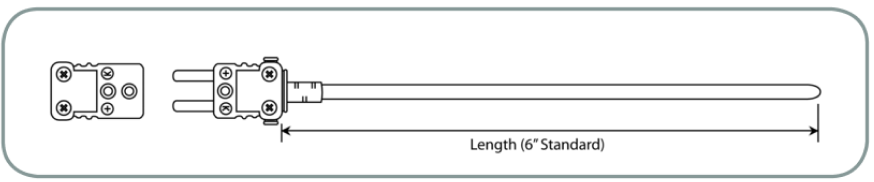

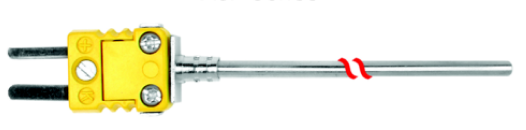

This Miniature Thermocouple Probe-Assembly comes completely assembled with a miniature color-coded thermoset plastic plug with flat polarized prongs. A female jack is included with each unit. Both stainless steel and inconel sheaths are available. The standard sheath has a length of six inches, please specify your length if other than six inches.
- Various compression fittings and mounting bushings are available.
- Duplex and multiple units are available.
NOTES:
- High temperature (800 degrees Fahrenheit) connectors and miniature plugs and jacks also available (contact factory for your requirement).
- PFA Teflon% encapsulation - good to 450“F, can be added to any probe.
Thermocouple calibration type N is available in all sizes.
| 304 Stainless Steel Sheath - Specifications | ||||
|---|---|---|---|---|

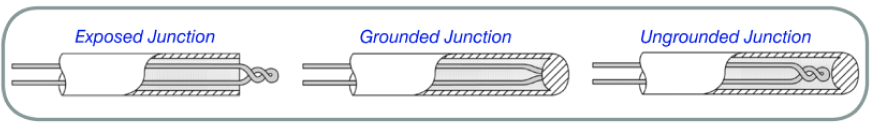

| Type | Sheath Diameter (in.) | Exposed Junction | Grounded Junction | Ungrounded Junction |
| Part No. | Part No. | Part No. | ||
| J J J | 0.040 0.052 0.125 | A8F-1 A8F-2 A8F-3 | A8F-4 A8F-5 A8F-6 | A8F-7 A8F-8 A8F-9 |
| K K K | 0.040 0.052 0.125 | A8F-10 A8F-11 A8F-12 | A8F-13 A8F-14 A8F-15 | A8F-16 A8F-17 A8F-18 |
| E E E | 0.040 0.052 0.125 | A8F-19 A8F-20 A8F-21 | A8F-22 A8F-23 A8F-24 | A8F-25 A8F-26 A8F-27 |
| T T T | 0.040 0.052 0.125 | A8F-28 A8F-29 A8F-30 | A8F-31 A8F-32 A8F-33 | A8F-34 A8F-35 A8F-36 |
| Inconel 600 Sheath - Specifications | ||||
|---|---|---|---|---|
| Type | Sheath Diameter (in.) | Exposed Junction | Grounded Junction | Ungrounded Junction |
| Part No. | Part No. | Part No. | ||
| J J J | 0.040 0.052 0.125 | A8F-37 A8F-38 A8F-39 | A8F-40 A8F-41 A8F-42 | A8F-43 A8F-44 A8F-45 |
| K K K | 0.040 0.052 0.125 | A8F-46 A8F-47 A8F-48 | A8F-49 A8F-50 A8F-51 | A8F-52 A8F-53 A8F-54 |
| E E E | 0.040 0.052 0.125 | A8F-55 A8F-56 A8F-57 | A8F-58 A8F-59 A8F-60 | A8F-61 A8F-62 A8F-63 |
| T T T | 0.040 0.052 0.125 | A8F-64 A8F-65 A8F-66 | A8F-67 A8F-68 A8F-69 | A8F-70 A8F-71 A8F-72 |
