Thermocouple Assemblies
With Standard Size Connector Attached
A8A Series

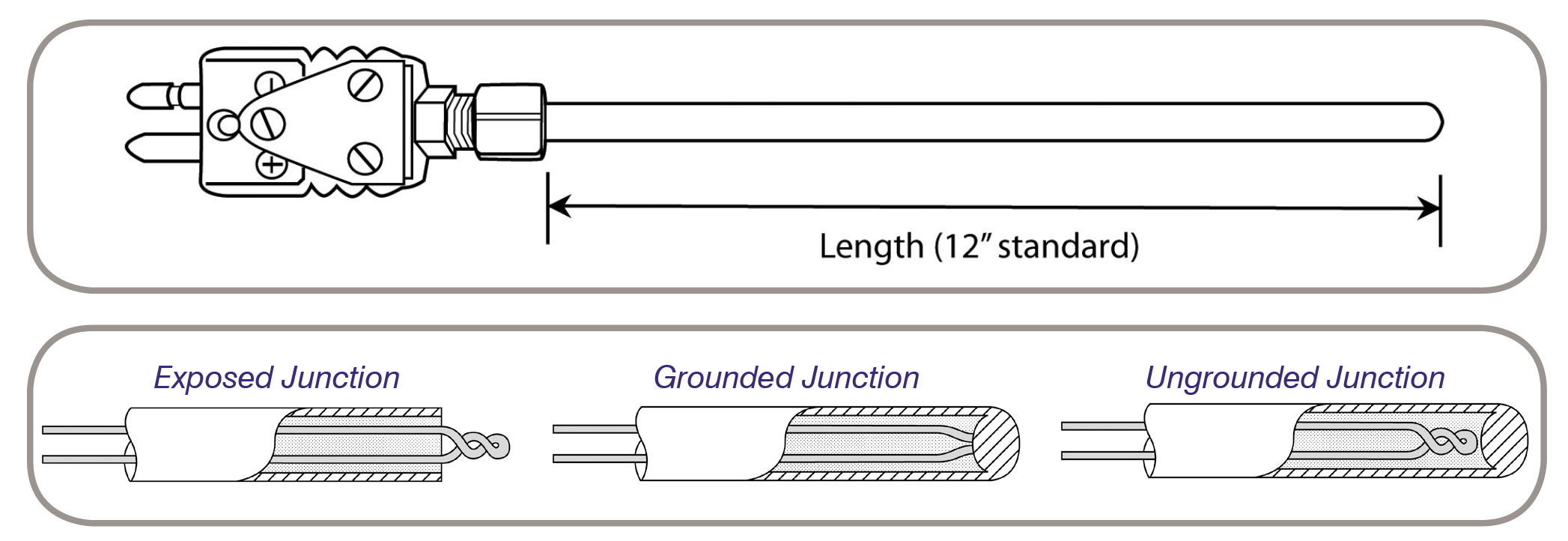

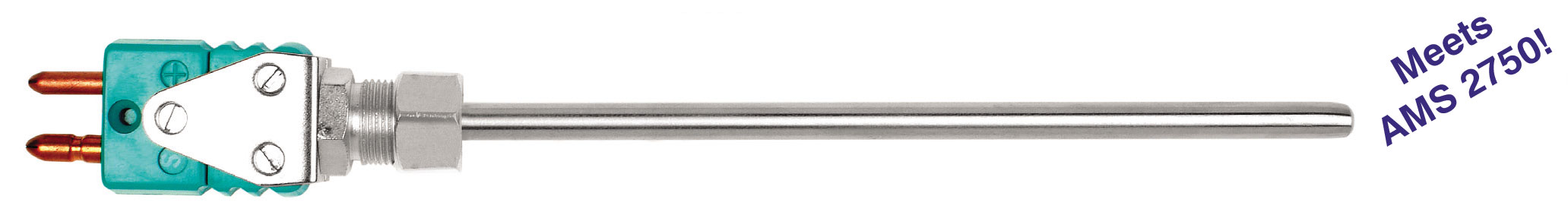

This thermocouple probe comes with the appropriate, color coded, male connector attached and the female connector (not shown) furnished with a cable clamp. Maximum service temperature of connectors is 450 degrees Fahrenheit. If other connectors are required, contact the factory.
- Duplex and multiple units also available, contact factory.
NOTES:
- High temperature (800 degrees Fahrenheit) standard connectors and miniature plugs & jacks also available
- PFA Teflon® encapsulation - good to 450°F, can be added to any probe.
Thermocouple calibration type N is available in all sizes.
| 304 Stainless Steel Sheath - Specifications | ||||
|---|---|---|---|---|
| Type | Sheath Diameter (in.) | Exposed Junction | Grounded Junction | Ungrounded Junction |
| Part No. | Part No. | Part No. | ||
| J J J J | 0.062 0.125 0.187 0.250 | A8A-1 A8A-2 A8A-3 A8A-4 | A8A-5 A8A-6 A8A-7 A8A-8 | A8A-9 A8A-10 A8A-11 A8A-12 |
| K K K K | 0.062 0.125 0.187 0.250 | A8A-13 A8A-14 A8A-15 A8A-16 | A8A-17 A8A-18 A8A-19 A8A-20 | A8A-21 A8A-22 A8A-23 A8A-24 |
| E E E E | 0.062 0.125 0.187 0.250 | A8A-25 A8A-26 A8A-27 A8A-28 | A8A-29 A8A-30 A8A-31 A8A-32 | A8A-33 A8A-34 A8A-35 A8A-36 |
| T T T T | 0.062 0.125 0.187 0.250 | A8A-37 A8A-38 A8A-39 A8A-40 | A8A-41 A8A-42 A8A-43 A8A-44 | A8A-45 A8A-46 A8A-47 A8A-48 |
| Inconel 600 Sheath - Specifications | ||||
|---|---|---|---|---|
| Type | Sheath Diameter (in.) | Exposed Junction | Grounded Junction | Ungrounded Junction |
| Part No. | Part No. | Part No. | ||
| J J J J | 0.062 0.125 0.187 0.250 | A8A-49 A8A-50 A8A-51 A8A-52 | A8A-53 A8A-54 A8A-55 A8A-56 | A8A-57 A8A-58 A8A-59 A8A-60 |
| K K K K | 0.062 0.125 0.187 0.250 | A8A-61 A8A-62 A8A-63 A8A-64 | A8A-65 A8A-66 A8A-67 A8A-68 | A8A-69 A8A-70 A8A-71 A8A-72 |
| E E E E | 0.062 0.125 0.187 0.250 | A8A-73 A8A-74 A8A-75 A8A-76 | A8A-77 A8A-78 A8A-79 A8A-80 | A8A-81 A8A-82 A8A-83 A8A-84 |
| T T T T | 0.062 0.125 0.187 0.250 | A8A-85 A8A-86 A8A-87 A8A-88 | A8A-89 A8A-90 A8A-91 A8A-92 | A8A-93 A8A-94 A8A-95 A8A-96 |
