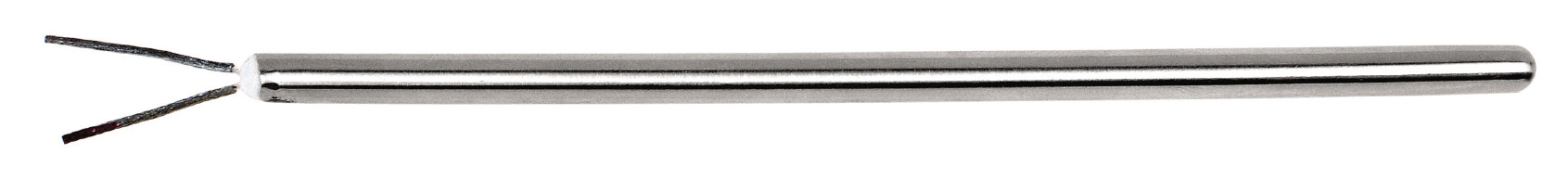

Thermocouple Probes
with One Inch of Bare Leads
A8 Series

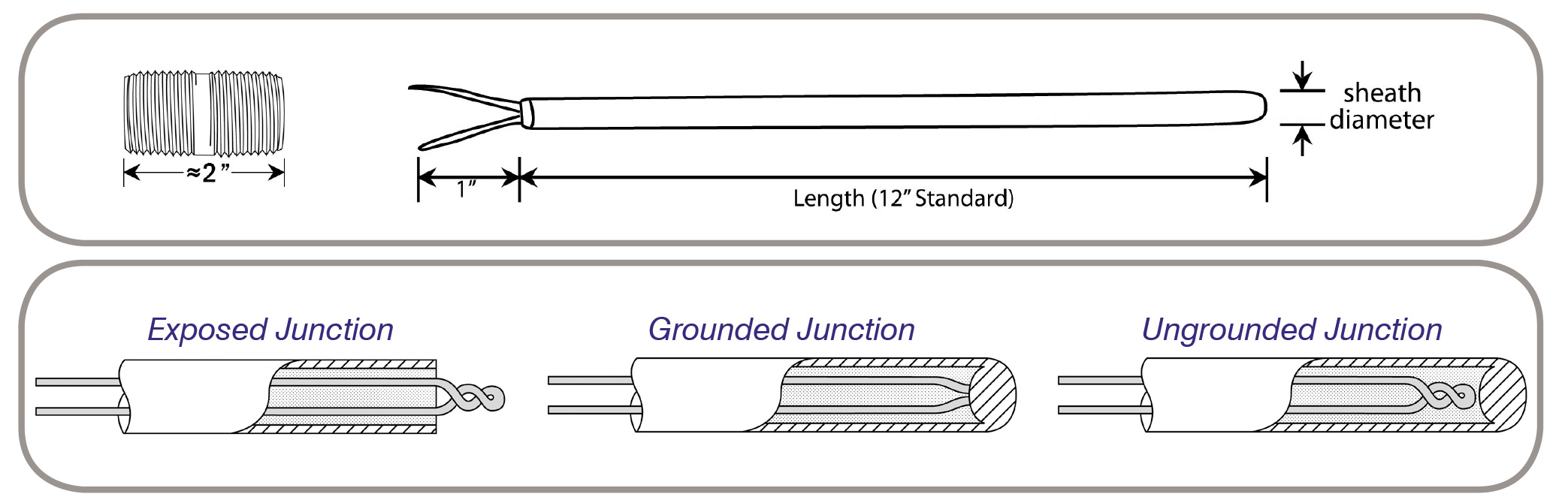

Probes can be supplied spring loaded or with fixed mounted fittings. All fittings are 304 stainless steel with 1/2 inch NPT for mounting into: walls, connector heads, or thermowells. The (SL - spring loaded) units allow up to 3/4 inch of travel. The (W - welded) units have the 1/2 inch NPT fitting brazed to the probe. All replacement units are supplied with one inch of bare leads.
- Duplex junctions units are available on all models except 1/16 inch diameter units. Contact factory for more information.
NOTES:
- Keep in mind that either Spring-Loaded (SL) or Welded (W) bushings utilize approximately two inches of the sheath length. Please account for this when specifying length.
- PFA Teflon® encapsulation - good to 450°F, can be added to any probe.
Thermocouple calibration type N is available in all sizes.
| 304 Stainless Steel Sheath - Specifications | ||||
|---|---|---|---|---|
| Type | Sheath Diameter (in.) | Exposed Junction | Grounded Junction | Ungrounded Junction |
| Part No. | Part No. | Part No. | ||
| J J J J | 0.062 0.125 0.187 0.250 | A8-1A A8-2A A8-3A A8-4A | A8-17 A8-18 A8-19 A8-20 | A8-33 A8-34 A8-35 A8-36 |
| K K K K | 0.062 0.125 0.187 0.250 | A8-5A A8-6A A8-7A A8-8A | A8-21 A8-22 A8-23 A8-24 | A8-37 A8-38 A8-39 A8-40 |
| E E E E | 0.062 0.125 0.187 0.250 | A8-9A A8-10A A8-11A A8-12A | A8-25 A8-26 A8-27 A8-28 | A8-41 A8-42 A8-43 A8-44 |
| T T T T | 0.062 0.125 0.187 0.250 | A8-13A A8-14A A8-15A A8-16A | A8-29 A8-30 A8-31 A8-32 | A8-45 A8-46 A8-47 A8-48 |
| Inconel 600 Sheath - Specifications | ||||
|---|---|---|---|---|
| Type | Sheath Diameter (in.) | Exposed Junction | Grounded Junction | Ungrounded Junction |
| Part No. | Part No. | Part No. | ||
| J J J J | 0.062 0.125 0.187 0.250 | A8-49 A8-50 A8-51 A8-52 | A8-65 A8-66 A8-67 A8-68 | A8D-81 A8D-82 A8D-83 A8D-84 |
| K K K K | 0.062 0.125 0.187 0.250 | A8-53 A8-54 A8-55 A8-56 | A8-69 A8-70 A8-71 A8-72 | A8-85 A8-86 A8-87 A8-88 |
| E E E E | 0.062 0.125 0.187 0.250 | A8-57 A8-58 A8-59 A8-60 | A8-73 A8-74 A8-75 A8-76 | A8-89 A8-90 A8-91 A8-92 |
| T T T T | 0.062 0.125 0.187 0.250 | A8D-61 A8D-62 A8D-63 A8D-64 | A8D-77 A8D-78 A8D-79 A8D-80 | A8D-93 A8D-94 A8D-95 A8D-96 |
