Thermocouple Assemblies
with General Purpose Heads
A8E Series

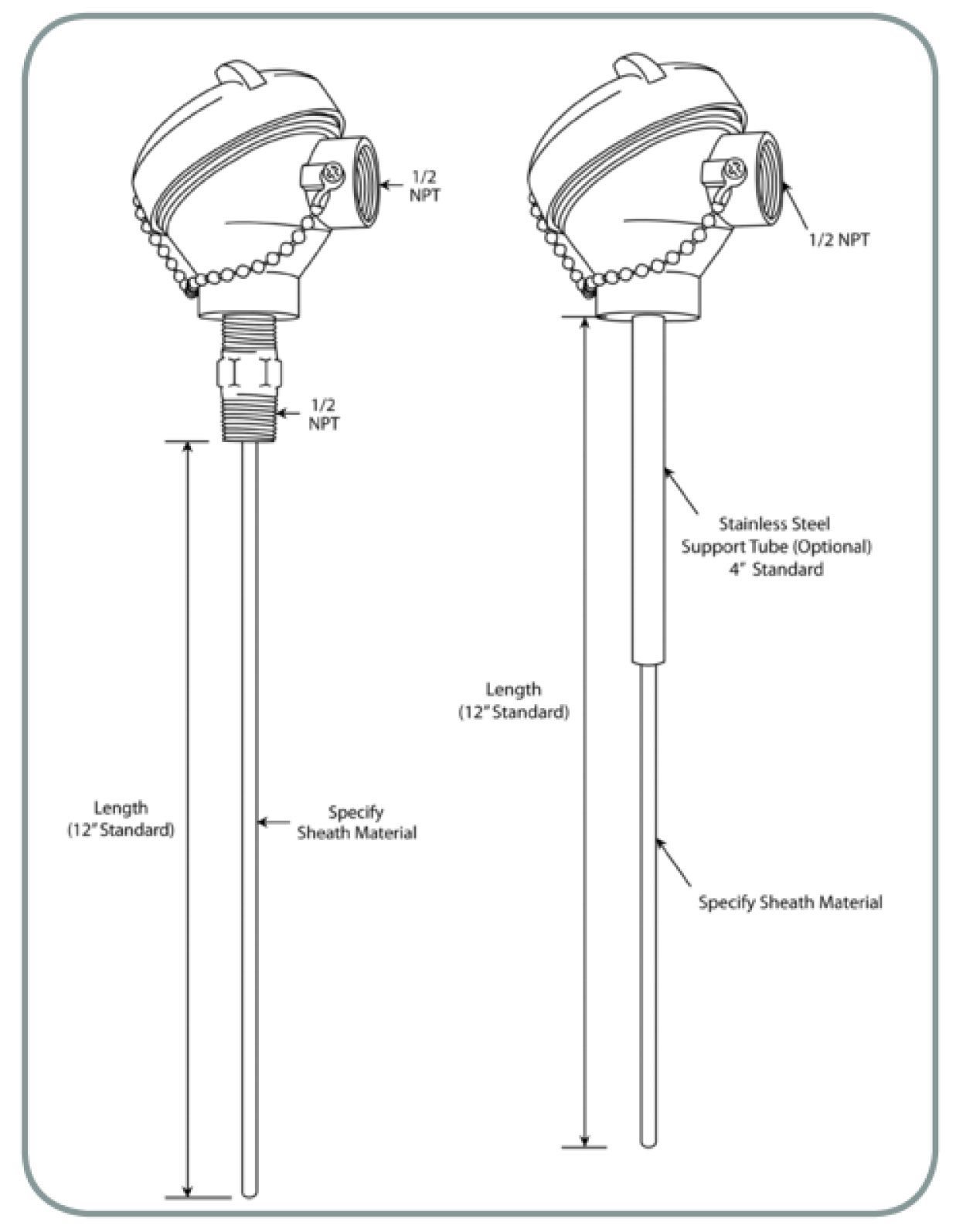

The standard probe contains an ungrounded thermocouple assembly with a General Purpose aluminum head. A terminal block is mounted on the interior of the GP Head. The GP Head has 1/2“ NPT mounting threads & conduit outlet. This assembly is available with a 4“ long stainless steel support tube for use with adjustable mounting fittings. The support tube is 1/8“ larger in diameter than the sheath diameter.
- Duplex units are available on units larger than 0.062” contact factory with your particular requirement.
- Various thermowells are available for use with these sensors.
- When ordering a unit with the optional stainless steel support tube, add suTx (ST) to part number.
- PFA Teflon encapsulation - good to 450°F, can be added to any probe.
NOTES:
Thermocouple calibration type N is available in all sizes.
| table2_heading | ||
|---|---|---|
| table_type | Sheath Diameter (in.) | Sheath Material |
| A8E-1 A8E-2 A8E-3 A8E-4 | 0.062 0.125 0.187 0.250 | SS 304 SS 304 SS 304 SS 304 |
| A8E-5 A8E-6 A8E-7 A8E-8 | 0.062 0.125 0.187 0.250 | lnconel 600 lnconel 600 lnconel 600 lnconel 600 |
| A8E-9 A8E-10 A8E-11 | 0.187 0.250 0.375 | Ouartz Ouartz Ouartz |
| A8E-12 A8E-13 A8E-14 | 0.187 0.250 0.375 | AI2O3 - 99.5% AI2O3 - 99.5% AI2O3 - 99.5% |
