General Purpose Thermocouple Probes

with Armored Flexible Cable & Fiberglass Insulated Lead Wire

A8C Series

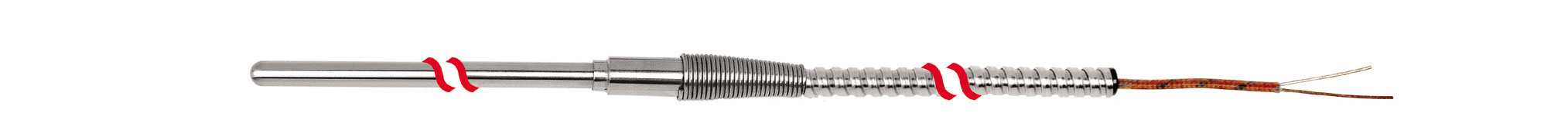

Armored Flexible Image1

These thermocouples are available with either stainless steel or inconel sheaths. Fitted with a transition from the sheath to 36 inches of fiberglass insulated flexible leads which are enclosed within stainless steel armor for use in rugged applications. These units are available in thermocouple types E, J, K, and T as a standard assembly. Other thermocouple calibrations as well as various lead wire insulation materials are available upon request.

Maximum service temperature of the transition adaptor 400 degrees Fahrenheit. Maximum use temperature of the thermocouple is determined by considering the sheath material being used and the thermocouple calibration. Standard units are 12 inches long, units can be made as short as 1-1/2 inches long without any special consideration.

    NOTES:
  • Various adjustable compression fittings and mounting bushings are available for these units.
  • Both standard size and miniature plugs and jacks are also available.
  • Duplex units are available on units larger than 0.062” contact factory with your particular requirement.
  • Lead lengths other than 36 inches, and lead wire insulations other than fiberglass are available.
  • PFA Teflon® encapsulation - good to 450°F, can be added to any probe.

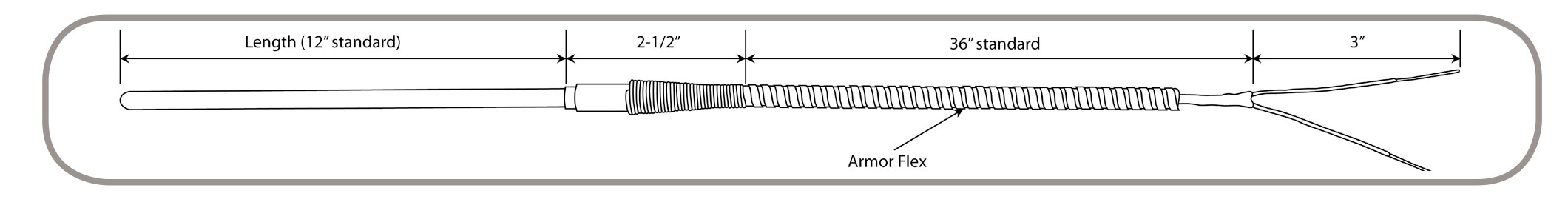

Armored Flexible Image2
Thermocouple calibration type N is available in all sizes.
304 Stainless Steel Sheath - Specifications
TypeSheath Diameter (in.)Exposed JunctionGrounded JunctionUngrounded Junction
Part No.Part No.Part No.
J
J
J
J
0.062
0.125
0.187
0.250
ABC-1
ABC-2
ABC-3
ABC-4
ABC-5
ABC-6
ABC-7
ABC-8
ABC-9
ABC-10
ABC-11
ABC-12
K
K
K
K
0.062
0.125
0.187
0.250
ABC-13
ABC-14
ABC-15
ABC-16
ABC-17
ABC-18
ABC-19
ABC-20
ABC-21
ABC-22
ABC-23
ABC-24
E
E
E
E
0.062
0.125
0.187
0.250
ABC-25
ABC-26
ABC-27
ABC-28
ABC-29
ABC-30
ABC-31
ABC-32
ABC-33
ABC-34
ABC-35
ABC-36
T
T
T
T
0.062
0.125
0.187
0.250
ABC-37
ABC-38
ABC-39
ABC-40
ABC-41
ABC-42
ABC-43
ABC-44
ABC-45
ABC-46
ABC-47
ABC-48
Inconel 600 Sheath - Specifications
TypeSheath Diameter (in.)Exposed JunctionGrounded JunctionUngrounded Junction
Part No.Part No.Part No.
J
J
J
J
0.062
0.125
0.187
0.250
ABC-49
ABC-50
ABC-51
ABC-52
ABC-53
ABC-54
ABC-55
ABC-56
ABC-57
ABC-58
ABC-59
ABC-60
K
K
K
K
0.062
0.125
0.187
0.250
ABC-61
ABC-62
ABC-63
ABC-64
ABC-65
ABC-66
ABC-67
ABC-68
ABC-69
ABC-70
ABC-71
ABC-72
E
E
E
E
0.062
0.125
0.187
0.250
ABC-73
ABC-74
ABC-75
ABC-76
ABC-77
ABC-78
ABC-79
ABC-80
ABC-81
ABC-82
ABC-83
ABC-84
T
T
T
T
0.062
0.125
0.187
0.250
ABC-85
ABC-86
ABC-87
ABC-88
ABC-89
ABC-90
ABC-91
ABC-92
ABC-93
ABC-94
ABC-95
ABC-96
