Hose Clamp Thermocouples

D6 Series

Our line of hose clamp thermocouples consists of three basic styles:

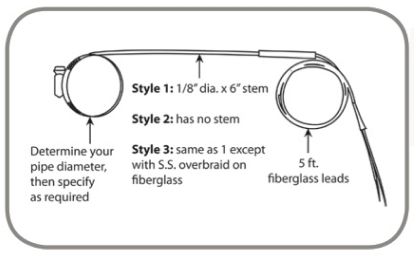

Style 1: Has an 1/8 inch OD by six inches long stainless steel sheath. The thermocouple wires inside the sheath are insulated with a high temperature mineral oxide insulation. Standard units have a grounded junction which is brazed to the stainless steel pipe clamp. Two versions of the attachment are available: i.e. tangential and perpendicular. Unless otherwise specified, we will furnish the tangential style (shown). The perpendicular style is available upon request at no additional cost. The style 1 units have five feet of fiberglass insulated extension wire connected to the stainless steel sheath.

Style 2: Is the same as style 1, except the stainless steel sheath is deleted. The fiberglass insulated thermocouple wires are welded directly to the stainless steel pipe clamp.

Style 3: Is the same as style 2, except the fiberglass insulated thermocouple wires have a stainless steel overbraid which reduces stray, unwanted electromagnetic pickup and increases lead wire durability.

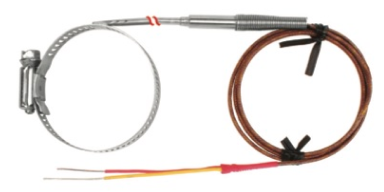

Hose Clamp Thermocouples
Hose Clamp Thermocouples
Specifications
Pipe OD (in.)Style 1Style 2Style 3
Part No.Part No.Part No.
7/32 - 5/8
3/8 - 1/2
3/8 - 5/8
1/2 - 5/8
5/8 - 3/4
3/4 - 1
1 - 1-1/4
D6-5
D6-6
D6-8
D6-10
D6-12
D6-16
D6-20
D6-552
D6-62
D6-82
D6-102
D6-122
D6-162
D6-202
D6-53
D6-63
D6-83
D6-103
D6-123
D6-163
D6-203
1-1/4 - 1-1/2
1-1/4 - 1-3/4
1-1/2 - 2
1-3/4 - 2-1/4
2-1/16 - 3
2-5/16 - 3-1/4
3 - 3-1/4
D6-24
D6-28
D6-32
D6-36
D6-40
D6-44
D6-52
D6-242
D6-282
D6-322
D6-362
D6-402
D6-442
D6-522
D6-243
D6-283
D6-323
D6-363
D6-403
D6-443
D6-523
3-1/4 - 3-1/2
4 - 4-1/2
4-1/16 - 5
4-5/8 - 5-1/2
5-1/8 - 6
5-7/8 - 6-3/4
D6-60
D6-68
D6-72
D6-80
D6-88
D6-104
D6-602
D6-682
D6-722
D6-802
D6-882
D6-1042
D6-603
D6-683
D6-723
D6-803
D6-883
D6-104
    NOTES:
  • All units come with five feet of 20 gage fiberglass insulated extension leads, other materials are available
  • All thermocouples are mounted in a tangential style as shown above, unless a perpendicular style is specified.
  • All thermocouples are grounded to hose clamp for fast response.
  • All units are available in thermocouple calibration types E, J, K, N and T.
  • Various terminations are available, contact us.
  • When ordering, specify part number and thermocouple type. Example: D6-5-J
  • To specify (U - ungrounded) junction add the suffix “U“ to the part number.
  • To specify (P - perpendicular) junction add the suffix “P“ to the part number.
