High Temperature Thermocouple Probes

A11C Series

High Temperature Probes

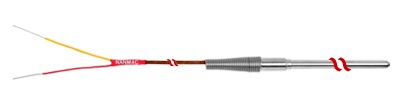

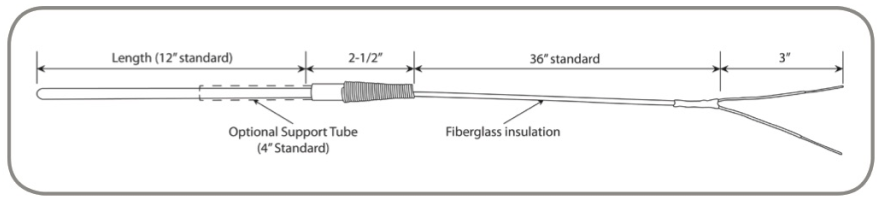

This probe contains an ungrounded thermocouple assembly with a transition junction, a stress relief spring, and 36 inches of fiberglass insulated #20 gage (0.032’) extension leads. These extension leads are shielded with a stainless steel over braid. This thermocouple is also available with a four inch long support tube attached to the transition end. The purpose of the support tube is to eliminate any damage to the refractory sheath that may be caused by the mounting bushing. That support tube is 1/8 inch larger in diameter than the thermocouple sheath. If a support tube is desired, insert the suffix (ST) onto the Part No.

    note
  • These thermocouples use #30 gage (0.010”) size elements.
  • These units are available with a standard miniature or high temperature connector attached (contact factory).
  • Various adjustable compression fittings andmounting bushings are available.
  • Various adjustable compression fittings andmounting bushings are available.
  • Duplex and multiple units also available (contact factory)
  • When ordering, specify Part No., Length “L’ and thermocouple tvpe. Example: A11B-1-IN-R
High Temperature Probes
Specifications
Part No.Sheath DiameterSheath Material
A11C-1
A11C-2
A11C-3
0.125
0.187
0.250
Molybdenum
A11C-5
A11C-6
A11C-7
0.125
0.187
0.250
Tantalum
A11C-9
A11C-10
A11C-11
0.187
0.250
0.375
Alumina
A11C-3
A11C-14
0.250
0.375
Zirconia
