Heavy Duty Head Mount Indicators

with 4-20 mAmp Transmitter Installed

F7_LCD_Series

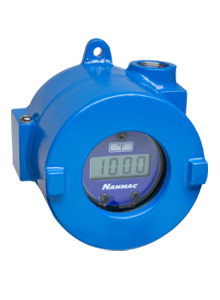

The F7-LCD-SP indicator is a heavy-duty LCD indicato installed within a NEMA 4 housing and includes an isolated, EX rated temperature transmitter with 4-20 mAmp o put.

Designed for field mounting, it utilizes a rugged, IP66 / NEMA 4 splash proof ho using.

All programming the installed temperature transmitter is done at the facto The user simply connects the required loop power (see F11-50 for full specifications).

The actual transmitter used for this requirement is the F11-50 series, except it has EX rating. Temperature ranges and input loop power requirements are the same. For general use requirements that do not need isolated inputs, EX rating and NEMA enclosures, please see the F7-LCD device.

General Specifications
Conduit_Connection3/4 NPT, top and bottom
MountingWall mount or NPT connection
MaterialCast aluminum, powder-coat epoxy paint
Heavy Duty Head Mount
User Specified information programmed by Nanmac)
  • Input Sensor Type
  • Cold Junction (Tc only, default is 32’F / 0”C
  • Temperature Scale F or C
  • Temperature Range (full sensor range as default
  • Sensor Break Delection (upscale or downscale - default is upscale
Indicator Specifications
DisplayBlack LCD w/4 digits including (-) sign
Dight Height— 0.5 inch (12mm)
RangeAny range between (-) 1999 to 9999, 0 to 3 decimals
Under / Over Range IndicatorFlashing Lo/Hi
Reponse TimeApproximately 0.5s
Ambient operating temperature-25 to + 70 C / -13 to + 160 F
Accuracy+/-0.05% full scale +/- 1 digital, typical
ProtectionIP g6 / NEMA 4
Wiring ConnectionStranded, < 16 AWG
