Head Mount Digital Displays
with 4-20 mAmp Transmitter Installed

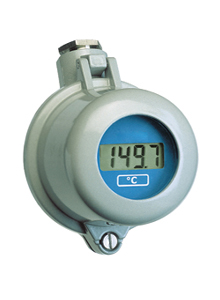

F7-LCD Series

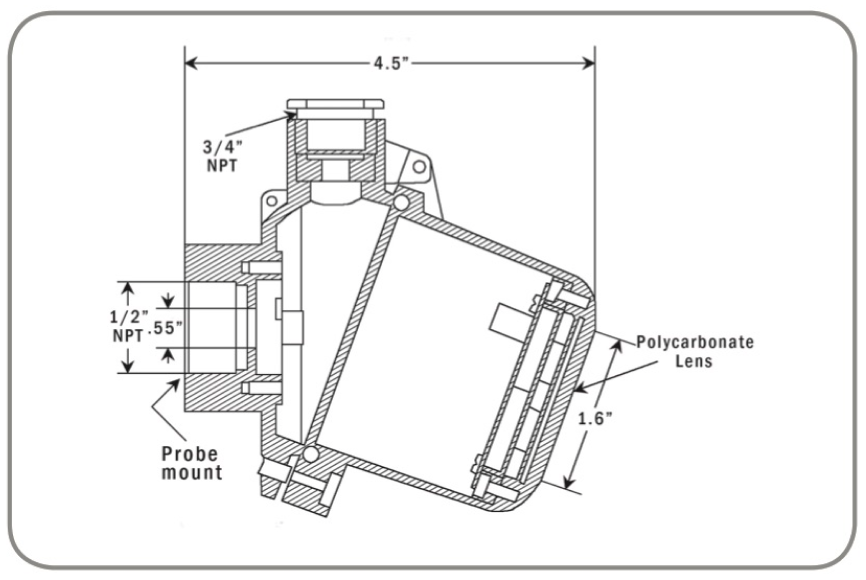

The F7-LCD is a head mounted digital indicator, including a non-isolated F11-40 Temperature Transmitter. Both the LCD display and the temperature transmitter are installed within an aluminum general purpose connector head. The connector head has a polycarbonate viewing window. The indicator has 1/2 inch high-contrast LCD digits. The connector head has 1/2 NPT process threads and 3/4 NPT conduit connection. Both NPT dimensions can be reduced to accommodate your requirement. Temperature transmitter programming performed by Nanmac Corporation.
User Specified Information (programmed by NANMAC)
- Input Sensor Type
- Cold Junction (thermocouple only, default is 32 F - O C
- Temperature Scale F or C
- Temperature Range (full sensor range as default
- Sensor Break Delection (upscale or downscale - upscale is default
| Indicator Specifications | |
|---|---|
| Display | High Contrast, Four-Digit LCD |
| Dight Height | Display 4 (0.5 inch high) digits including minus sign; — 0.5 inch (12mm) |
| Operating Temperatur | -20 to 70“C (—4 to 158°F) |
| Typical Accuracy | * 0.1P of programmed span +- digit |
