General Use Thermowells

Standard for 3/8” Diameter Elements)

A23 Series

General Use Thermowells
General Use Thermowells
Typical Pressure - Temperature Rating - PSI
MaterialTemprerature - F
7020040060080010001200
Brass
Carbon Steel
SS304
SS316
Monel
5,000
5,200
7,000
7,000
6,500
4,200
5,200
6,200
7,000
6,000
1,000
4,800
5,600
6,400
5,400

4,600
5,400
6,200
5,300

3,500
5,200
6,100
5,200

1,500
4,500
5,100
1,500


1,650
2,500
    note
  • Stainless steel or brass ccoommprreession fittings are available for mountin probes into these thermowells.
Specifications

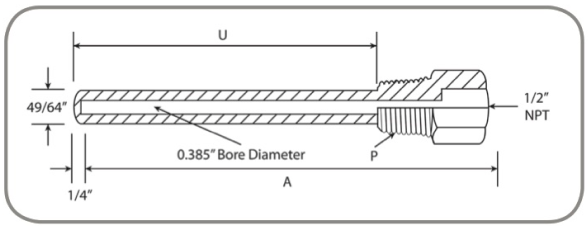

Exterior Thread (p)Stem Length (A)Insertion Length (U)Bore Diameter (B) = 0.385
Material SS304Material SS316Material Carbon SteelMaterial Brass
Part No.Part No.Part No.Part No.
3/4* NPT4
6
9
12
15
18
24
2-1/2
4-1/2
7-1/2
10-1/2
13-1/2
16-1/2
22-1/2
A23-1
A23-2
A23-3
A23-4
A23-5
A23-6
A23-7
A23-15
A23-16
A23-17
A23-18
A23-19
A23-20
A23-21
A23-29
A23-30
A23-31
A23-32
A23-33
A23-34
A23-35
A23-43
A23-44
A23-45
A23-46
A23-47
A23-48
A23-49
1" NPT4
6
9
12
15
18
24
2-1/2
4-1/2
7-1/2
10-1/2
13-1/2
16-1/2
22-1/2
A23-8
A23-9
A23-10
A23-11
A23-12
A23-13
A23-14
A23-22
A23-23
A23-24
A23-25
A23-26
A23-27
A23-28
A23-36
A23-37
A23-38
A23-39
A23-40
A23-41
A23-42
A23-50
A23-51
A23-52
A23-53
A23-54
A23-55
A23-56
