Flexible Thermocouples
and Extension Wire Assemblies
A14B Series
- When ordering, specify Part No. and fill in the four letter blocks.
- For stainless steel over braid add the suffix SS to the Part No.
- Example: A14B-2-K-20-36 (specifies a style 2 thermocouple with spade lugs on cold end, type k, gage #20 and an overall length of 36 inches)
NOTES:
| A14B | A | B | C | D |
|---|---|---|---|---|
| Style | Gauge | Type | Length | |
| 1 | 8 | J | (inches) | |
| 2 | 14 | K | ||
| 3 | 20 | T | ||
| 4 | 24 | E | ||
| N |
When ordering, specify Part No. and fill in the 4 letter blocks Example: AI4A-2-20-K-24 (specifies a Style 2 duplex thermocouple with 20 gauge Type K elements and length of 24 inches
| Illustrations | Specifications | |
|---|---|---|

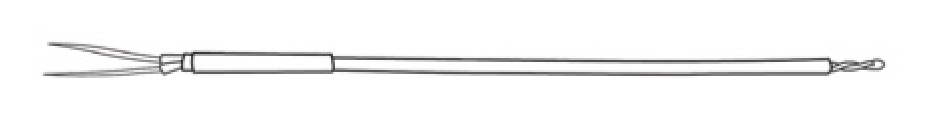

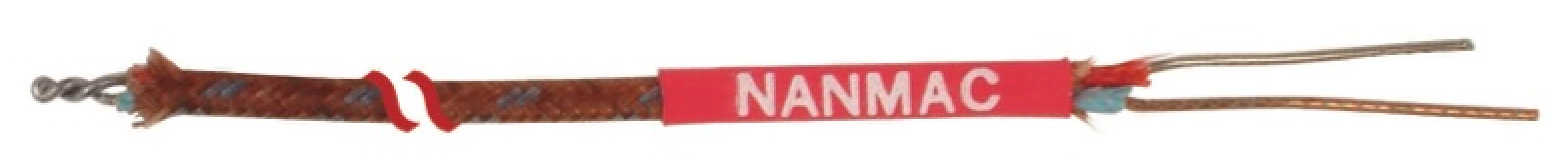

 | Style 1 | Twist and welded hot junction with leads stripped at cold end |

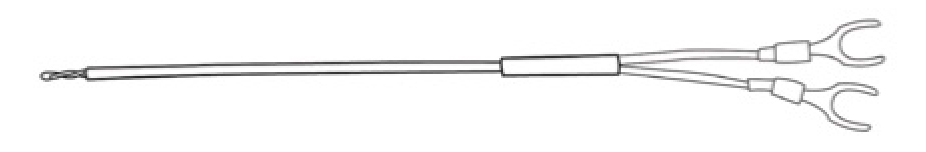

 | Style 2 | Twist and welded hot junction with lugs at cold end |

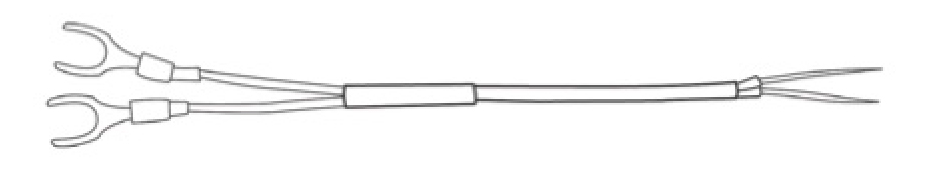

 | Style 3 | Stripped one end Lugs on other end |

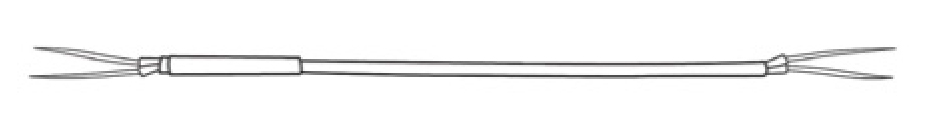

 | Style 4 | Stripped on both ends |

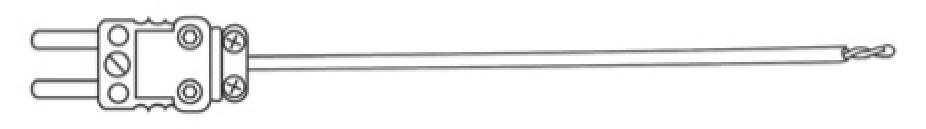

 | Style 5 | Twist and welded hot junction with plug at cold end |

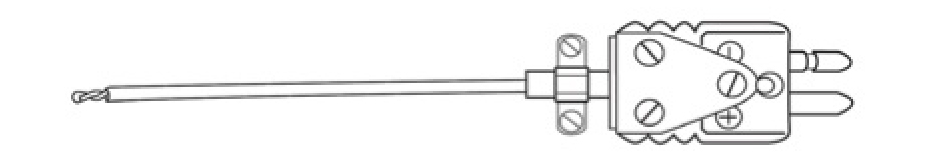

 | Style 6 | Twist and welded hot junction with miniature plug at cold end |
