Thermocouple Extension Assemblies
A8H Series

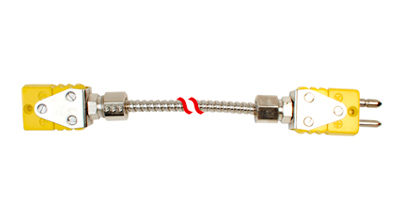

Our Thermocouple Extension Assemblies feature #20 gage fiberglass insulated wire with flexible stainless steel armor. Solid #20 gage thermocouple grade wires are used for thermocouple types E, J, K, and T. Extension grade #20 gage solid wires are used for types RX, Sx, Bx, and Cx thermocouples. Other insulation types are available, contact factory with your specity requirement (standard length 'Y' is 36 inches +- 1 inch).
Specify Part No. and length (Example: A8H-1-36 specifies type , and 36 inches long). Thermocouple caibration type N is available in all sizes.
| Dimension Drawings | Specifications | ||
| Part No. | Type | ||
| Single |  | ABH-1 ABH-2 ABH-3 ABH-4 ABH-5 ABH-6 | J K E T R/R/B C |
| Single |  | ABH-7 ABH-8 ABH-9 ABH-10 ABH-11 ABH-12 | J K E T R/R/B C |
| Single |  | ABH-13 ABH-14 ABH-15 ABH-16 ABH-17 ABH-18 | J K E T R/R/B C |
| Duplex |  | ABH-19 ABH-20 ABH-21 ABH-22 ABH-23 ABH-24 | J K E T R/R/B C |
| Duplex |  | ABH-25 ABH-26 ABH-27 ABH-28 ABH-29 ABH-30 | J K E T R/R/B C |
| Duplex |  | ABH-31 ABH-32 ABH-33 ABH-34 ABH-35 ABH-36 | J K E T R/R/B C |
