Ribbon & Weldable Tab Thermocouples

for Surface Temperatures

B4 Series

Ribbon weldable tab

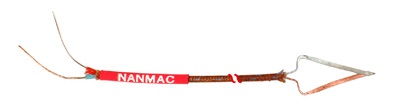

The Model RCF thermocouple has a flat ribbon sensing tip (1/2 inch wide by 7/9 inches long by ~0.002 inches thick) with 36 inches of flexible fiberglass leads. This model has lowmillisecond response times:

The Model RCS thermocouple is similar to Model RCF except, it has a 12 inch long stainless steel clad, ceramic packed extension shaft. As a result, the sensor can operate up to temperatures of 2,000 degrees Fahrenheit maximum, depending upon thermocouple type and duration of exposure.

The Model WT weldable tab thermocouple has a 3/4 inch by 3/4 inch by 0.030 inch thick stainless steel welding tab, brazed onto a grounded junction (1/8 inch OD thermocouple). It also has 36 inches of fiberglass insulated extension leads. The sensing tiphas a maximum service temperature of 1,000 degrees Fahrenheit.

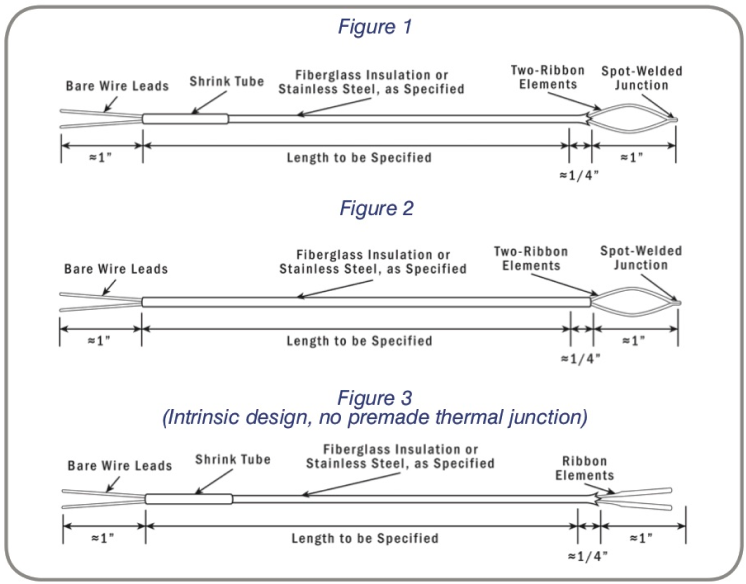

Ribbon thermocouples
Specifications
Part No.ModelWire Size (in.)Dimension_ADimension_BDimension_C
B4-1
B4-2
RCF0.020
0.013
7/8
5/8
1/2
3/8
-
-
B4-3
B4-4
RCF0.020
0.013
7/8
5/8
1/2
3/8
1/8
1/16
B4-5
B4-6
WT0.020
0.013
-
-
-
-
1/8
1/16
