Conduit Heads

Explosion Proof (EP) & Atex Approved (ATEX)

F7-8 & F7-9 Series

Conduit Heads

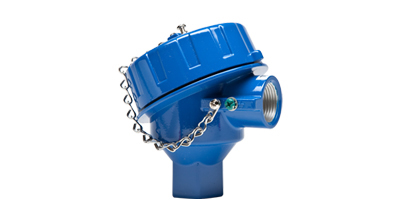

Explosion Proof (EP) & Atex Approved (ATEX) heads are available in cast aluminum or stainless steel, screw cover units. These units are rated for use in hazardous environments where extreme caution must be observed. Internal threaded holes accommodate four wire terminal blocks. Various terminal blocks are available.

    Explosion Proof Zone Approval:
  • Class I, Div 1, Group B, C & D
  • Class II, Div 1, Groups E, F & G
  • NEMA 4x, Type 4
  • ATEX: Ex d 11C T6 IP68
  • ATEX: Ex tD A21 T100°C IP68

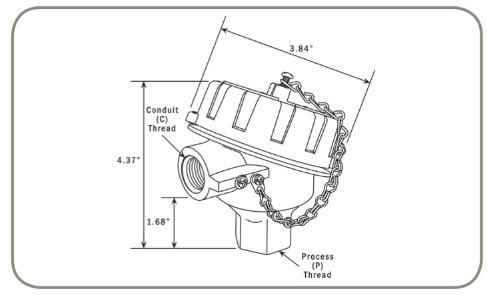

Conduit Heads
Specifications
Part No.MaterialEpoxy colorOFd or Certificationthread Sizes (P x C)
F7-8-1212-AL
F7-8-1234-AL
F7-8-3434-AL
AluminumBlueATEX1/2" x 1/2" NPT
1/2" x 3/4" NPT
3/4" x 3/4" NPT
F7-8-1212-SS
F7-8-1234-SS
F7-8-13434-SS
SS316-ATEX1/2" x 1/2" NPT
1/2" x 3/4" NPT
3/4" x 3/4" NPT
F7-9-1212-AL
F7-9-1234-AL
F7-9-3434-AL
AluminumSilverFM & CSA1/2" x 1/2" NPT
1/2" x 3/4" NPT
3/4" x 3/4" NPT
F7-9-1212-SS
F7-9-1234-SS
F7-9-3434-SS
SS316-FM & CSA1/2" x 1/2" NPT
1/2" x 3/4" NPT
3/4" x 3/4" NPT
