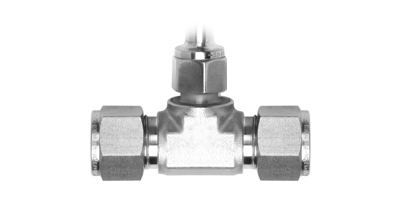

Economical Pipe-Line Thermocouples & RTDs
Simple Installation Into Pipelines
D7 Series
- Conventional thermocouple with stainless steel sheaths and grounded junctions
- Available in thermocouple calibration types: E, J, K, N & T
- Also available with R100 ohm RTD
- Ternperature range to 500 degrees Fahrenheit
- Pressure range to 500 psi

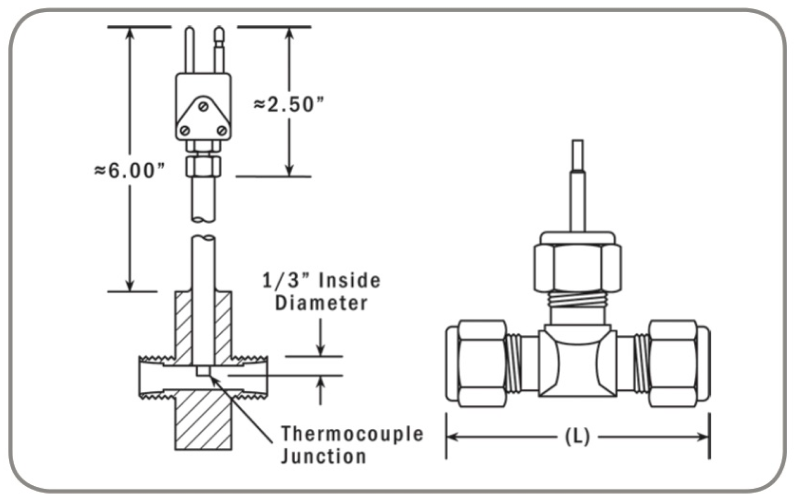

- Sensing junction immersed 1/3 diameter into stream
NOTES:
Stainless Steel Union
| Specifications | |||
|---|---|---|---|
| Part No. | Tube OD (D) | Hex (H) | Length (L) |
| D7-4T-(•)-(*) D7-5T-(•)-(*) D7-6T-(•)-(*) D7-8T-(•)-(*) D7-10T-(•)-(*) D7-12T-(•)-(*) D7-1gT-(•)-(*) | 1/4 5/1g 1 3/8 1/2 5/8 3/4 1.0 | 9/1g 5/8 11/16 7/8 1.0 1-1/8 1-1/2 | 2.12 2.34 2.40 2.84 3.0g 3.14 3.86 |
