Adjustable Bayonet Thermocouples
A5A Series

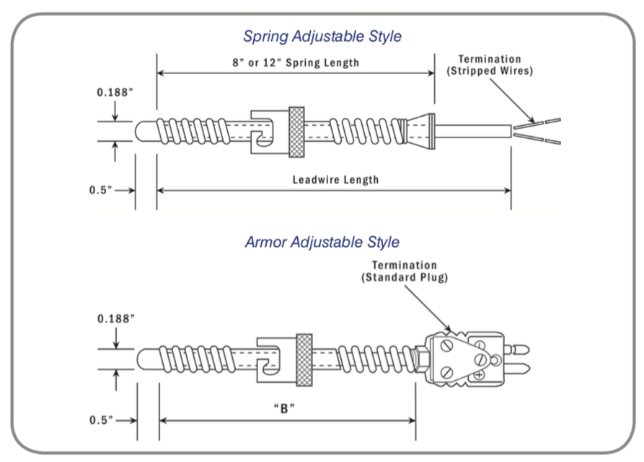

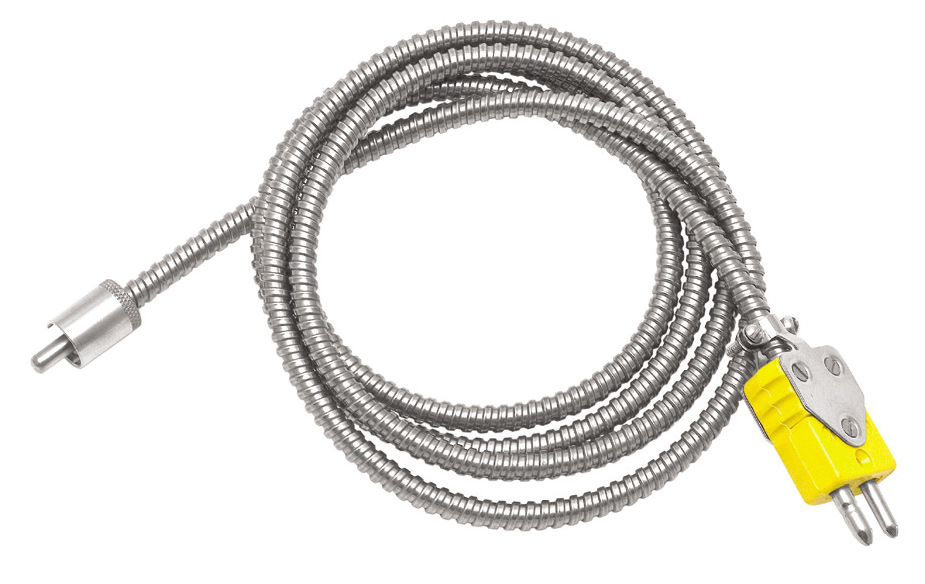

The A5A Bayonet Thermocouple allows simple, rapid adjustment of the immersion length to each application. The thermocouple can be specified with a bayonet cap on either an eight inch spring to allow for up to seven inches of adjustable immersion; or on the flexible armor to allow for full “B” length adjustable immersion.
- Spring or armor adjustable provide wide versatility
- Fiberglass insulation offers protection to the wire
NOTES:
- Longer lengths are available
- When ordering, specify style & type Example: A5A-10-J, for type J
| Specifications | |||
|---|---|---|---|
| Part No. | Style | Lead Wire | Terminations |
| A5A-10 A5A-15 A5A-20 | Bayonet cap on 8” spring Bayonet cap on 12” spring Bayonet cap on flexible armor | 60” length 60” length 60” length | Stripped wires 3” long Stripped wires 3” long Male thermocouple connector |
